The fully automatic honeycomb paper making machine can automatically produce honeycomb paper rolls on demand and intelligently, reducing manual intervention and improving production efficiency by at least 20%. For the packaging industry, honeycomb paper is a lightweight and durable cushioning and protective packaging material, and 100% recyclable.
This fanfold paper folding machine is mainly used for batch and automatic perforation cutting and folding of kraft paper rolls into fan-shaped stacks to form Z fold paper, which can be used for filling in boxes and transporting protective products.
Automatic kraft bubble bag mailer envelope making machine for making mailer bags made of kraft paper and poly bubble lining. The coated kraft paper is combined with the PE bubble wrap by heating the jumbo roll.
Product Video
Product Descriptions And Features

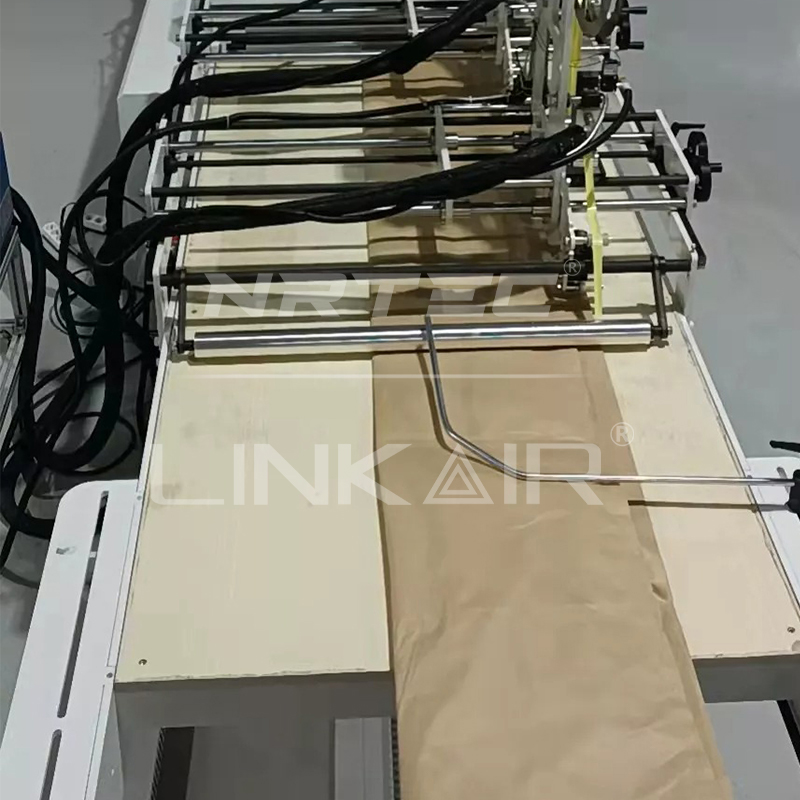

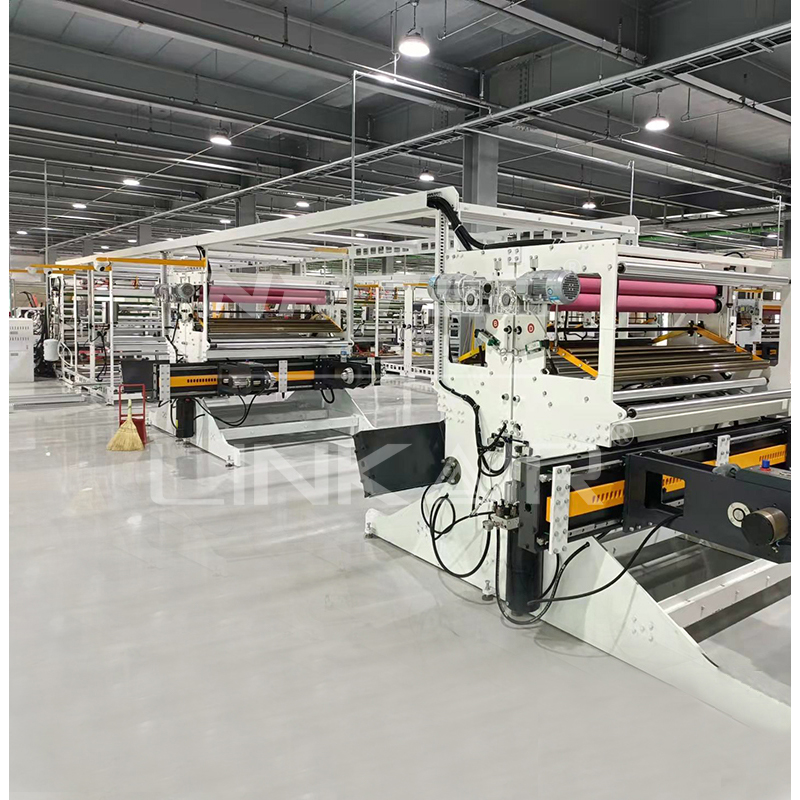

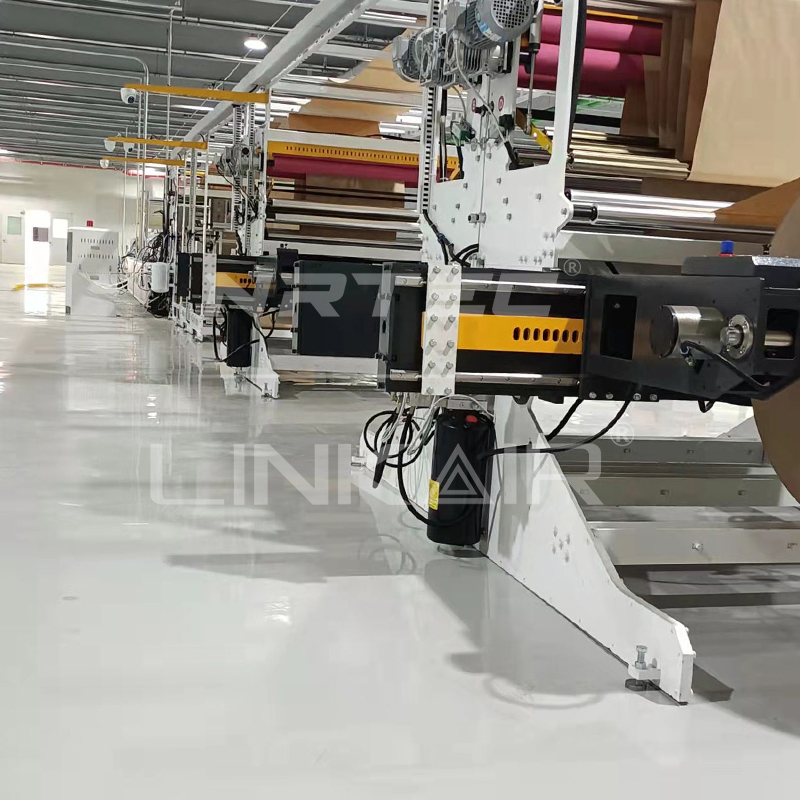

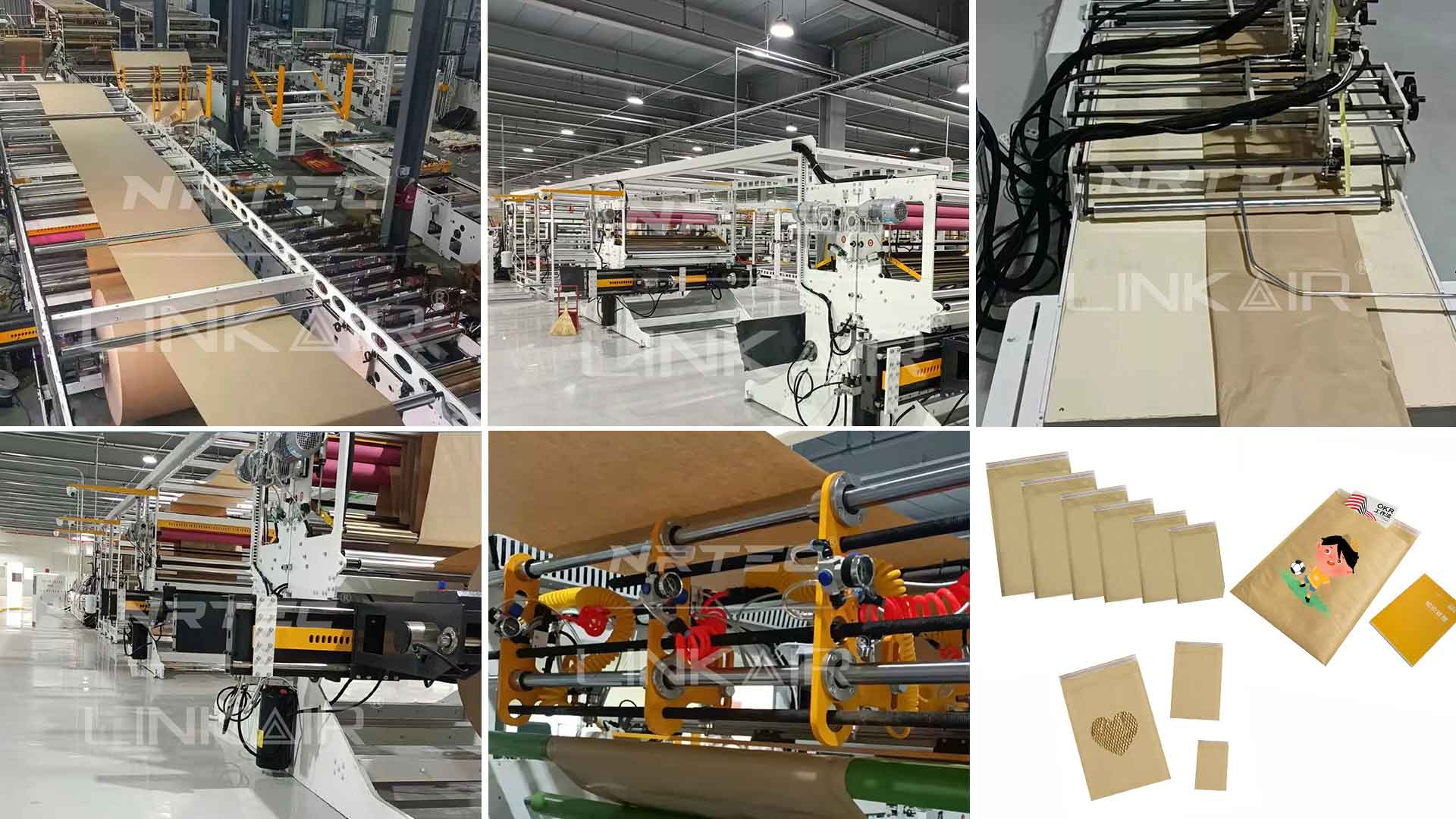

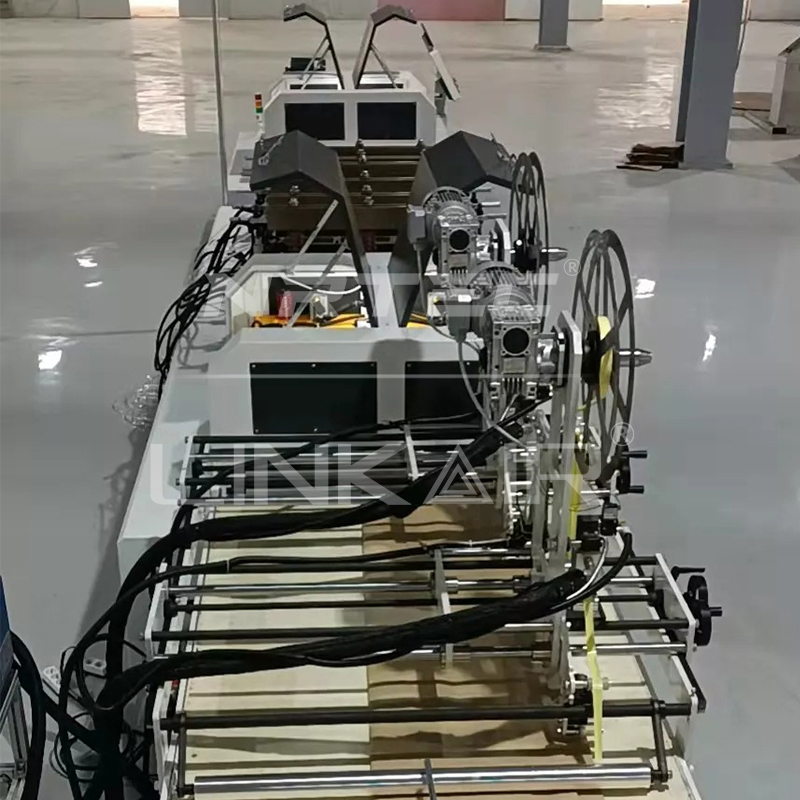

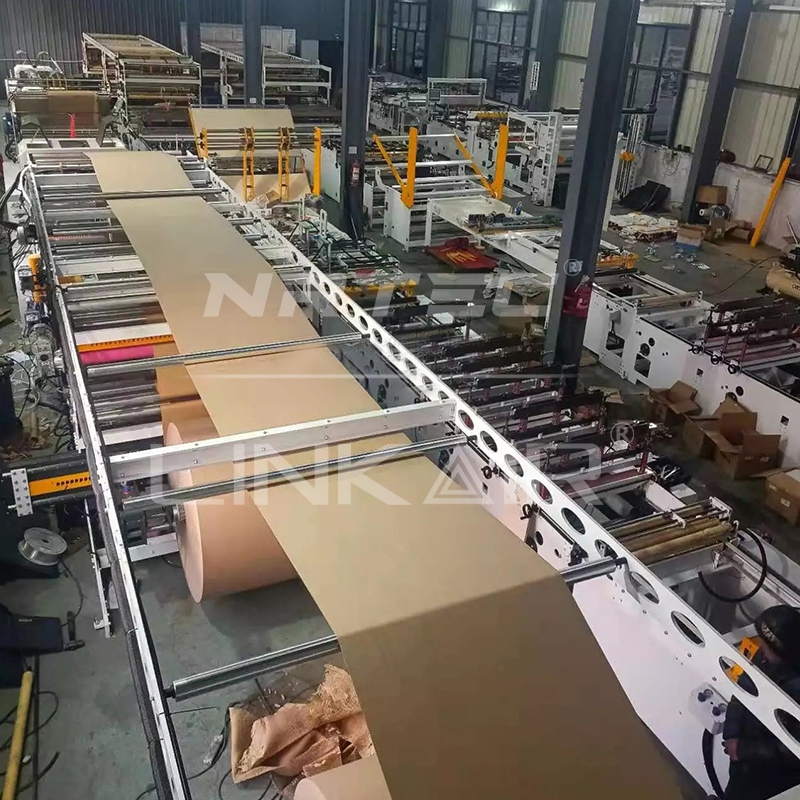

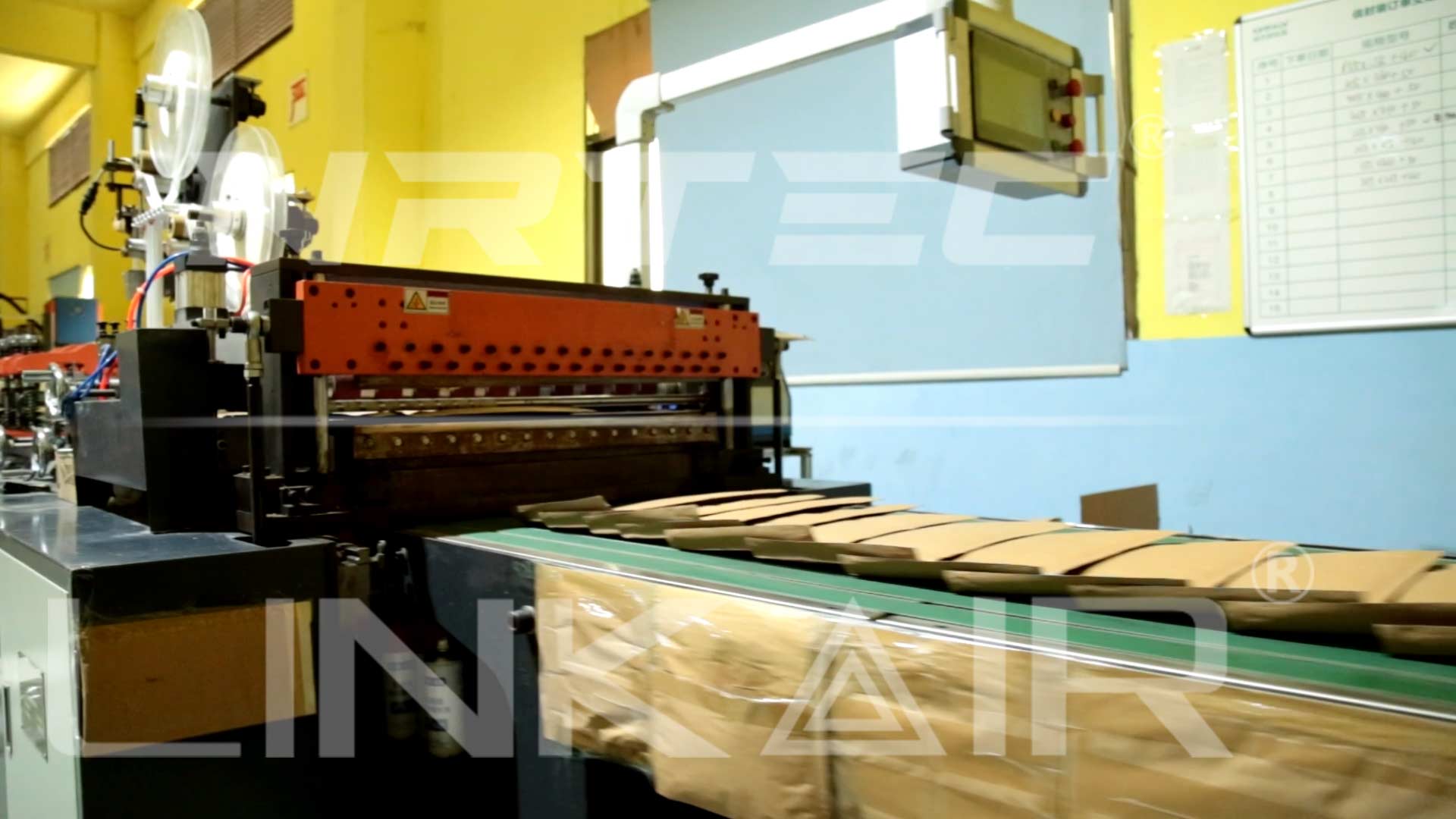

The paper padded mailer envelope bag making machine integrates modern mechanical engineering and automatic control technology to produce honeycomb paper mailer bags by feeding in the raw material kraft paper. The machine is equipped with top-level pneumatic, electric and operating electronic components from world-renowned brands, plus unique environmentally friendly water glue, to efficiently and intelligently produce packaging materials with good sealing and 100% recyclability, meeting the market's requirements for environmentally friendly, lightweight And the growing demand for high-strength packaging materials.
The paper padded mailer envelope bag making machine uses advanced motion control technology in the background, from unwinding to slitting, forming and packaging, all controlled by computer technology, including but not limited to: raw material feeding, forming, cutting and forming, sealing and gluing Combined, sorted and collected, and finally output by the output system through the conveyor belt.
Features:
1. Automatic machines controlled by PLC and frequency converter.
2. Customized honeycomb paper mailer bags with logo, size or pattern and color
3. The rewinding and unwinding part is equipped with an air expansion shaft, making it very convenient to load and unload products.
4. Simple operation, efficient and intelligent production technology
5. Source factory, providing 3-to-1 after-sales service, product videos, and dispatched engineer services
Product Parameters
| Item | Paper Padded Mailer Envelope Bag Making Machine | |||
| MOQ | Support 1 piece delivery | |||
| Warranty | 1-year | |||
| Unwinding Width | <=1500 mm | |||
| Speed Of Making Bag | 30-60 units /min | |||
| Unwinding Diameter | <=1200 mm | |||
| Speed of Making Bag | 30-60 units /min | |||
| Machine Speed | 70 /min | |||
| Unwinding Shaft | 3 Inches of Air Swelling the Shaft | |||
| Total Power | 25kw | |||
| Machine Dimension | 26500mm*2200mm*2250mm | |||
| Air Supply | Auxiliary Device | |||
| Parameters | Bag Width:<=800 mm Bag Length:700 mm Voltage:22V-380V,50HZ Machine Weight:13.5 T | |||
Product Applications
Honeycomb paper mailer bags produced:
1. It can be used by postal, e-commerce and Amazon logistics or express packaging industries such as DHL, UPS and Fedex to expand its own business chain.
2. Solve your own inventory anxiety and simplify your own company’s procurement process and procurement costs.
