The fully automatic honeycomb paper making machine can automatically produce honeycomb paper rolls on demand and intelligently, reducing manual intervention and improving production efficiency by at least 20%. For the packaging industry, honeycomb paper is a lightweight and durable cushioning and protective packaging material, and 100% recyclable.
This fanfold paper folding machine is mainly used for batch and automatic perforation cutting and folding of kraft paper rolls into fan-shaped stacks to form Z fold paper, which can be used for filling in boxes and transporting protective products.
Automatic kraft bubble bag mailer envelope making machine for making mailer bags made of kraft paper and poly bubble lining. The coated kraft paper is combined with the PE bubble wrap by heating the jumbo roll.
Product Video
Product Description

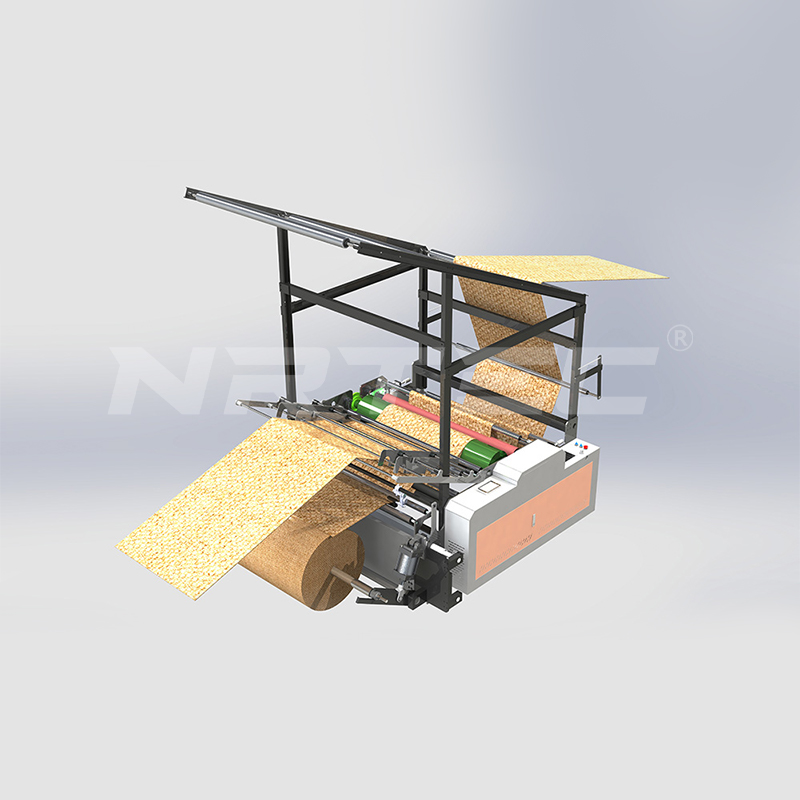

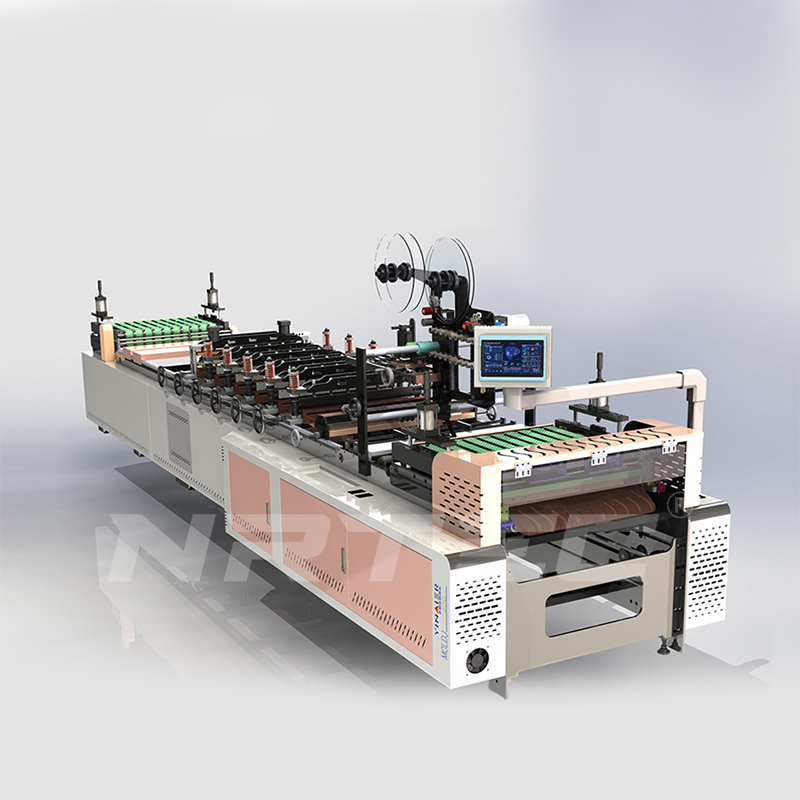

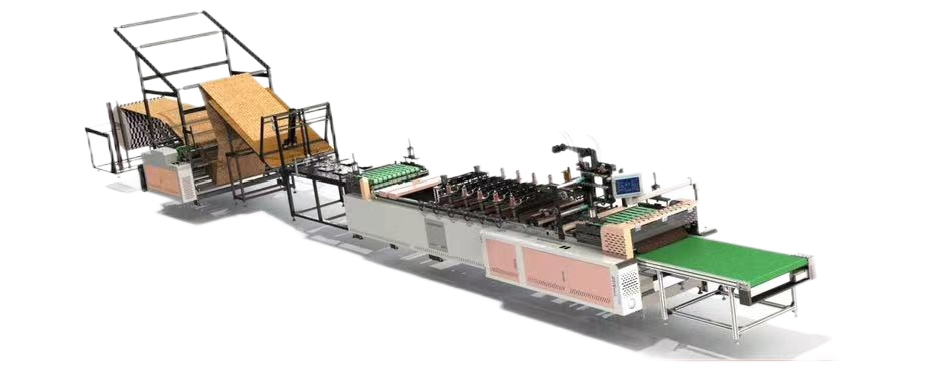

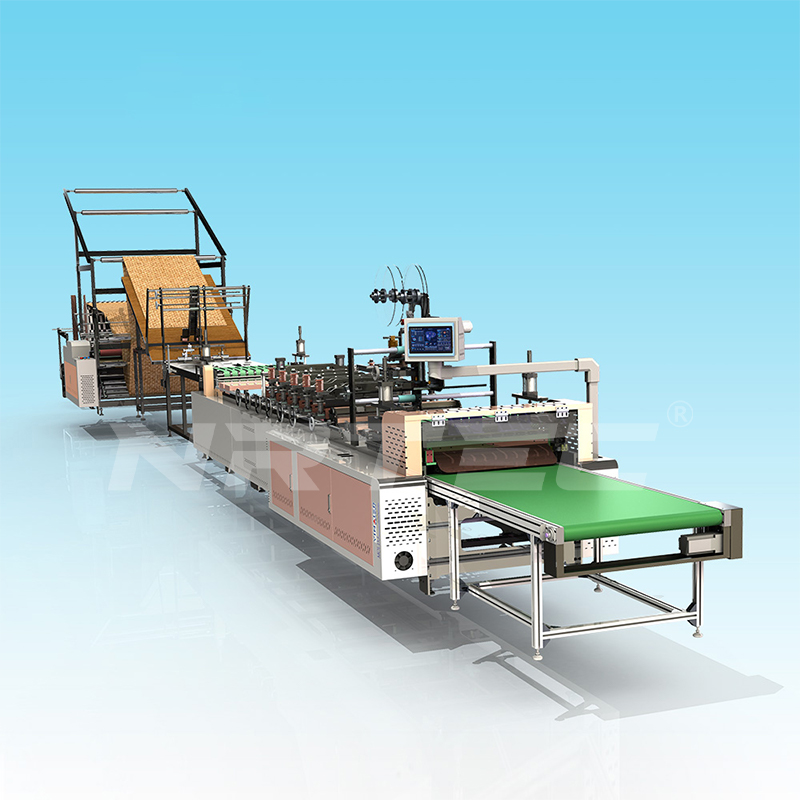

The automatic kraft bubble bag mailer envelope making machine is mainly designed for batch and large-scale production of bubble bags envelope. It is an efficient production equipment integrating automation and intelligence. The bubble envelope bags produced can be used to package books, important documents, handicrafts, and are lightweight and durable express packaging materials.
The automatic bubble bag mailer envelope making machine mainly combines kraft paper and PE bubble film for heating and sealing. The whole process is controlled by a computer system and can preset parameters in advance according to needs. The PE bubble film is formed by the first heating and pressing of the horizontal heat seal strip. , and then continue the second pressing through the second cooling bar, so that the bubble bag mailer envelope can be cut to a fixed length.
About Product Features

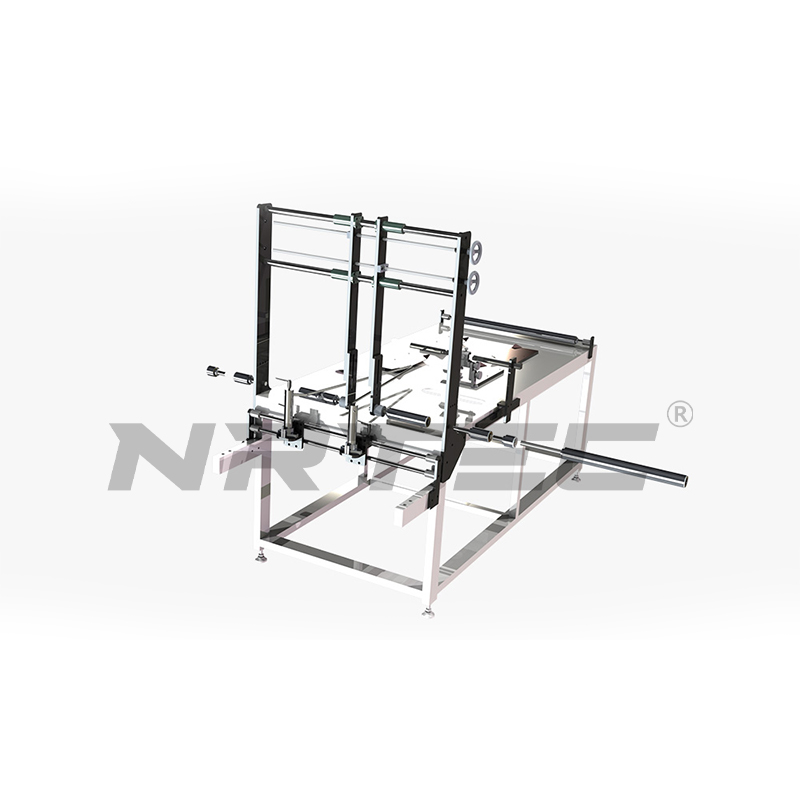

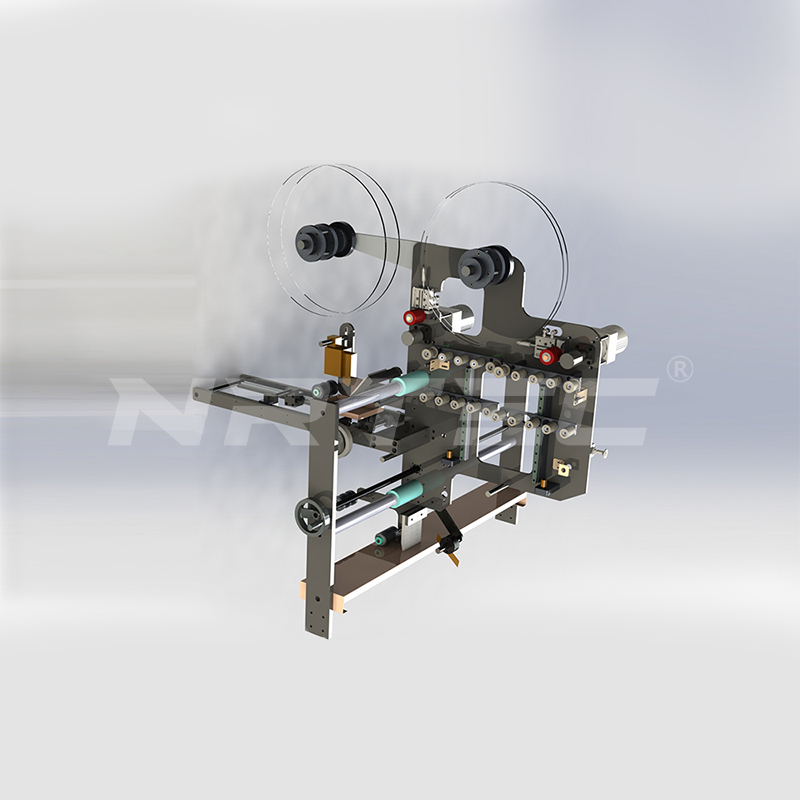

The automatic bubble bag mailer envelope making machine controls production through a 5.7-inch touch screen interface, including length, electronic counting and quantity operations. The whole machine includes Material receiving device and Bag cutting machine to control the overall production process.
This machine ensures the accuracy and stability of feeding by using anti-skid and anti-static belt feeding. Moreover, it is also equipped with some cross-sealing devices to stabilize the bubble bag forming and feeding. When the raw materials are fed in, they will go through several processes such as the laying of bubble film, paper lamination, sealing and cutting, and finished product formation. They are then transported through the conveyor belt to prevent the accumulation of finished products.
Product Parameters
| Item | bubble bag mailer envelope making machine |
| MOQ | Support 1 piece delivery |
| Warranty | 1-year |
| Bubble loading rack | non-stop refueling |
| Folding device | double cylinder deviation correction |

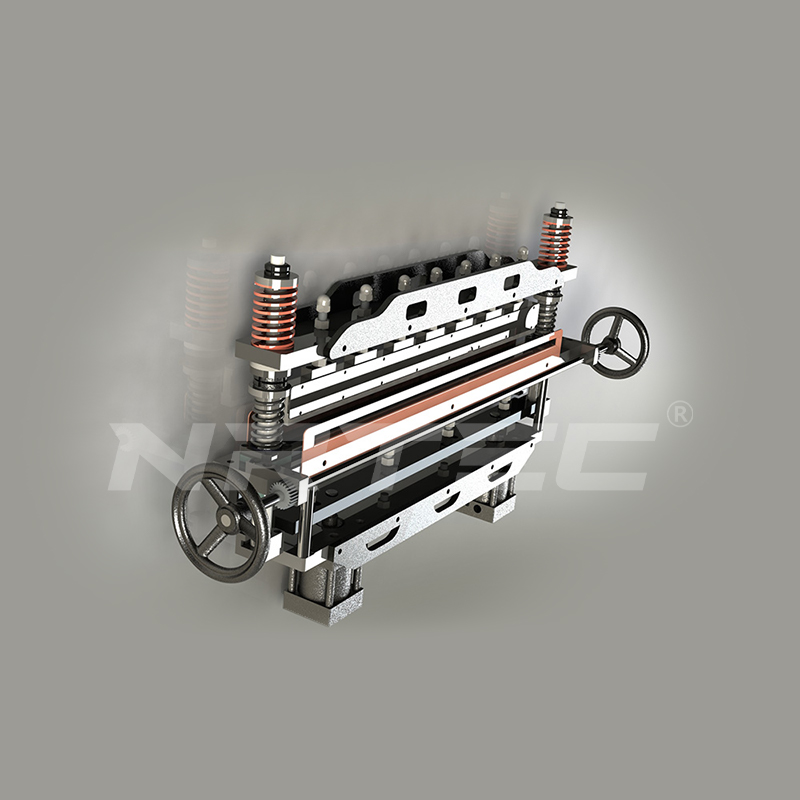

| Bag cutting machine | 12mm Full steel frame |
| Materialreceiving device | 120w speed reducer motor |
| Laminating machine | 15KW electromagnetic heating |
| Dimension parameters | 19200mm*2330mm*3300mm |
| Speed | 20~260pcs/min |
| Cut bag width | 800mm |
| Effective width of die- cutting stick | 1600mm |
| Weight | 4500KG |
| Power | 26KW |
What is the difference between honeycomb padded mailers and bubble mailers?
One of the biggest differences between the two mailer packaging is environmental performance. Honeycomb paper padded mailer is more environmentally friendly and more recyclable than bubble mailer, but in fact, there is no absolute winner. Which packaging method to choose depends on your brand positioning and the properties of the packaged items.

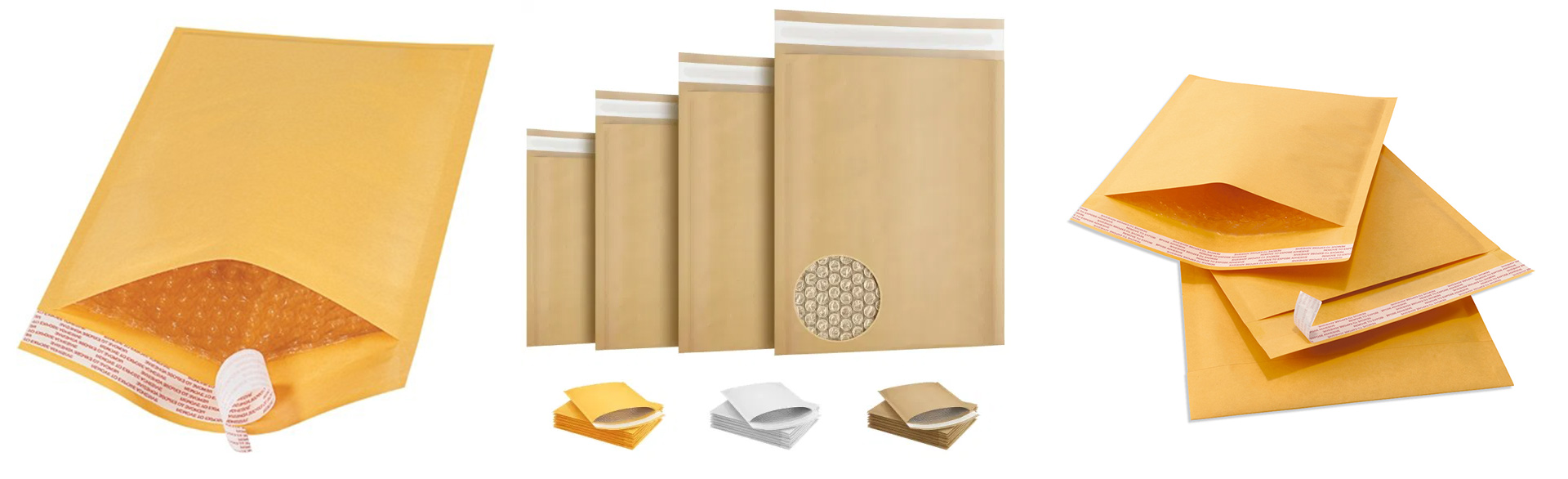

What is a paper padded mailer?
Honeycomb paper padded mailers are padded mailer envelopes filled with honeycomb paper. They can be made of plastic bubbles or recyclable paper, both are lightweight and customizable, both are glued to the bubble bag lining, and are used to protect valuable and fragile items during transportation.
What is bag making machine?
The bubble mailer bag making machine is a fully automated production equipment used in the industry for mass production of bubble mailer bags. The bubble mailer bag making machine can automatically produce envelope bags of different sizes and colors for different packaging applications.
