The fully automatic honeycomb paper making machine can automatically produce honeycomb paper rolls on demand and intelligently, reducing manual intervention and improving production efficiency by at least 20%. For the packaging industry, honeycomb paper is a lightweight and durable cushioning and protective packaging material, and 100% recyclable.
This fanfold paper folding machine is mainly used for batch and automatic perforation cutting and folding of kraft paper rolls into fan-shaped stacks to form Z fold paper, which can be used for filling in boxes and transporting protective products.
Automatic kraft bubble bag mailer envelope making machine for making mailer bags made of kraft paper and poly bubble lining. The coated kraft paper is combined with the PE bubble wrap by heating the jumbo roll.
About The Product

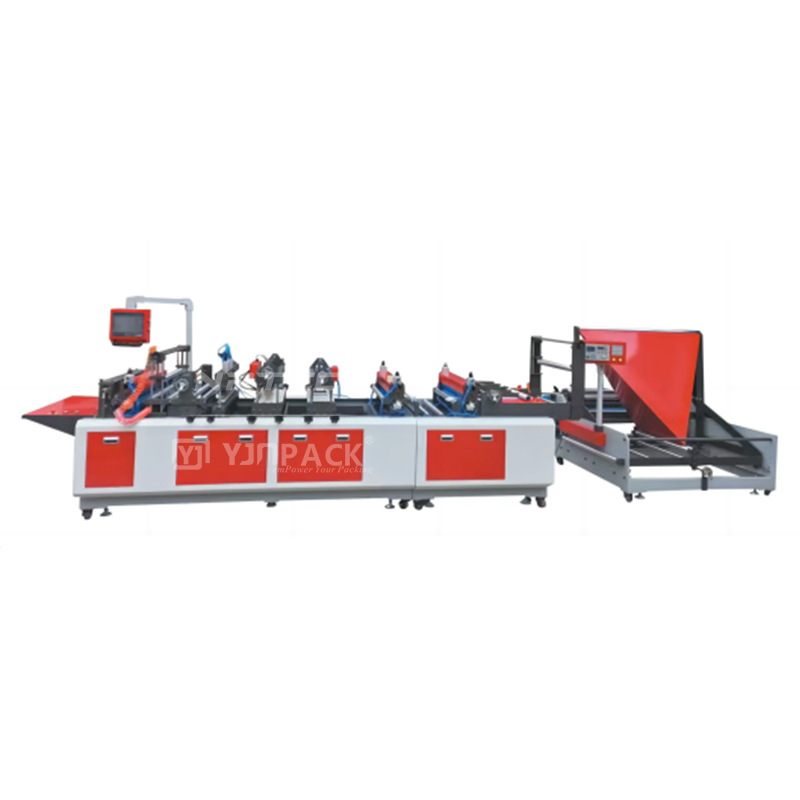

An Air Column Bag Making Machine is an automated packaging device used to manufacture air-filled cushioning bags, commonly known as "air bags" or "air column bags." These bags are lightweight, recyclable, and provide excellent protection for fragile items during shipping and handling.
The Air Column Bag Making Machine is a cutting-edge device designed to meet these demands by producing high-quality, inflatable air column bags for product protection and packaging. This article delves into the features, benefits, and applications of this machine, providing procurement professionals with a comprehensive understanding of its role in modern packaging solutions.
The cushioning air column bags produced by the air column bag making machine are widely used in the following scenarios:
*Shock protection: Disperse the impact force through independent air columns to protect fragile items (such as glass, electronic products, and precision instruments).
*Filling fixation: Replace foam fillers, adapt to irregular product packaging, and prevent displacement during transportation.
*Weight reduction and cost reduction: The weight of air column bags is only 1/10 of that of traditional materials, which significantly reduces logistics costs.
Air Column Bag Making Machine:How It Works
*Film loading: High-quality plastic film is loaded onto the machine, usually in roll form.
*Material unwinding: The machine automatically imports multi-layer composite film raw materials.
*Film forming: The film is pressed into a continuous air column unit structure through hot or cold pressing technology.
*Inflation and sealing: The precise inflation system injects air into the air column unit and uses high-temperature heat sealing technology to seal the air column to form an independent cushioning air column bag unit structure.
*Cutting and rewinding: Cutting according to preset size, the finished product can be rolled or stacked for subsequent packaging.
*Packaging: The finished air bags are collected and prepared for packaging. This automated process ensures accuracy, reduces manual labor and minimizes waste.
Product Parameters
| Item | Air Column Bag Making Machine |
| Model | ACFMM-02 B-type |
| Type | Full-automatic machine |
| MOQ | 1 Sets |
| Warranty | 1 Year |
| Logo & Color | Accept logo and color customization |
| Machine Size |
|
| Power Supply | 220V,8.8KW |
| Maximum Unwinding Diameter | 500mm |
| Maximum Width Of Film | 1200mm |
| Maximum Speed | 80-120pcs/min |
| Weight Approx. | 3200kg+1100kg |
Product Features and Advantages
1. Efficient and automated production
*Fully automatic integrated process, supports high-speed production (speed can reach 80-120 meters/minute), greatly improving production capacity.
*Intelligent control system (PLC+touch screen) realizes one-key parameter adjustment, reducing the difficulty of manual operation.
2. Energy saving and environmental protection
*Precise inflation technology reduces gas waste, and the air column sealing reaches more than 99%, ensuring long-term leak-proof.
*Supports degradable film materials, in line with the global trend of environmentally friendly packaging.
3. Flexible adaptability
*The mold can be quickly replaced to support the production of air column bags of different sizes (width 200mm-1200mm) and shapes (single-sided/double-sided air column).
*Adapt to a variety of film thicknesses (50-150μm) to meet different load-bearing requirements (5kg-50kg).
4. Stability and durability
*The core components use imported servo motors and German pneumatic components to ensure long-term stable operation.
*The fault self-checking system monitors the equipment status in real time to reduce the risk of downtime.
5. Reduce packaging costs
Air column bags are light in size and have excellent cushioning properties. They can replace traditional packaging materials such as foam and paper scraps, saving storage and transportation costs.
Application industries
*E-commerce and logistics: Provide customized cushioning packaging for e-commerce packages (such as cosmetics, 3C products, and furniture).
*Electronic manufacturing: Protect the safety of precision components such as mobile phones, computers, and display screens during transportation.
*Medical and food: Produce FDA/CE-certified air column bags for medical devices, drugs, or cold chain food packaging.
*Industrial equipment: Shockproof and moisture-proof packaging for heavy machinery accessories and automotive parts.
Q1: Is this machine easy to operate for beginners?
Yes. Most machines come with PLC control, user-friendly interfaces, and automated tension/sealing systems.
Q2: What is the production speed?
It depends on the configuration, but industrial machines usually run at 10–30 meters per minute.
Q3: How long is the machine lifespan?
A well-maintained machine can last 8–10+ years.
Q4: Can I produce different bag sizes with one machine?
Yes. By adjusting settings and heat-sealing molds, you can make multiple types and sizes.
Q5: Do air column bags replace foam packaging?
In most cases, yes — especially for fragile or high-value products.
