About Product

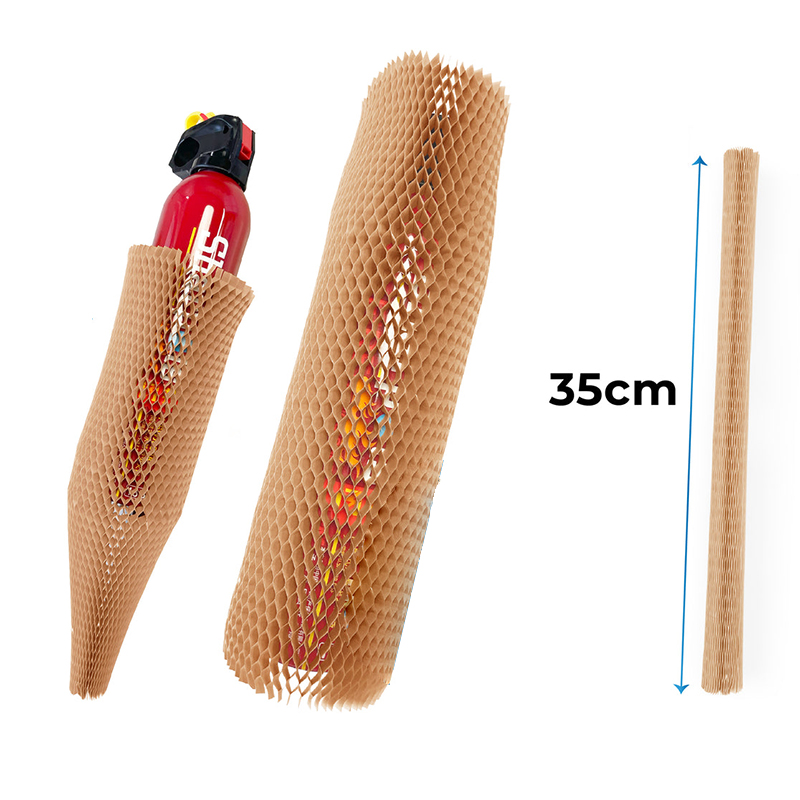

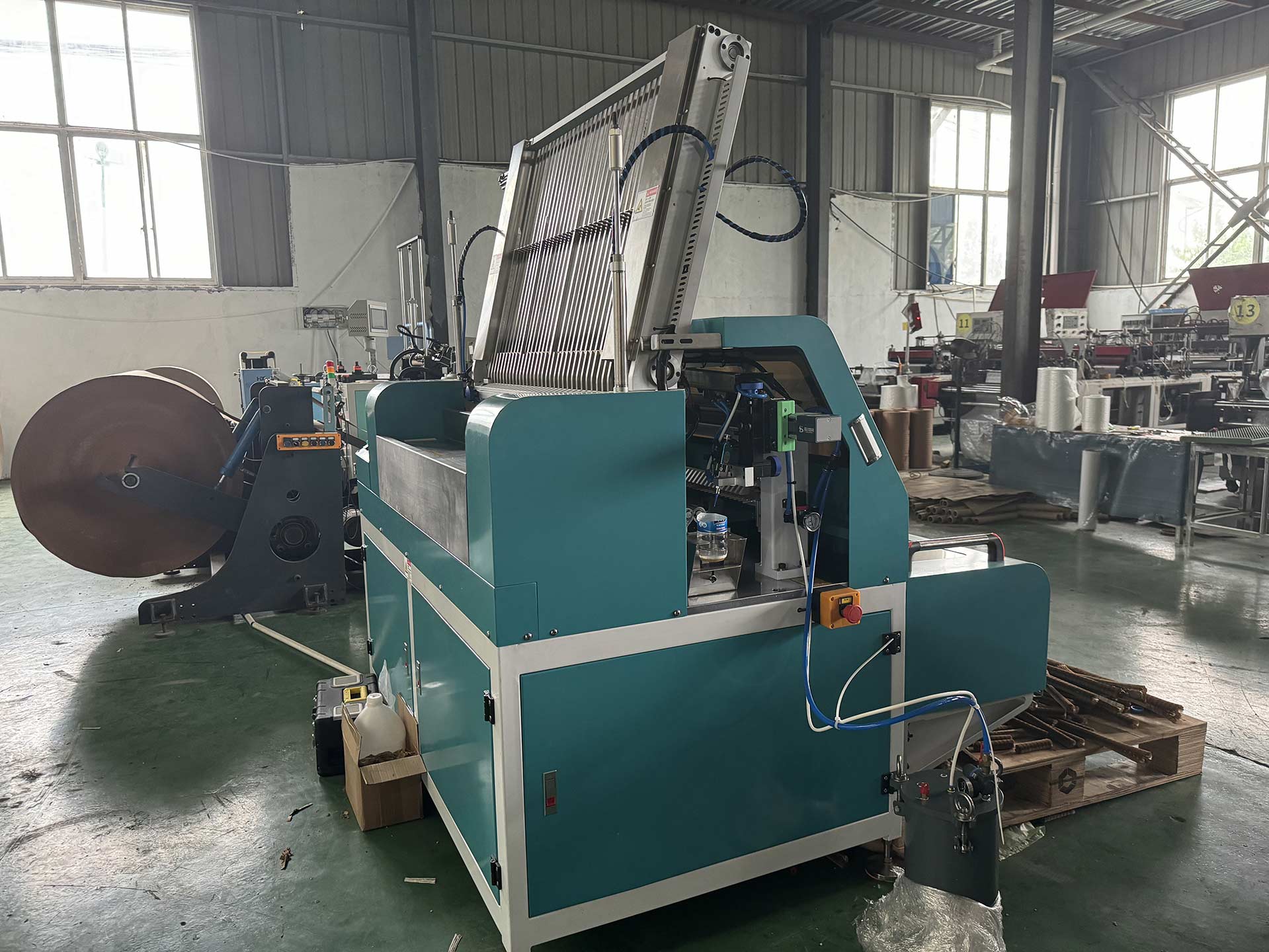

Honeycomb paper sleeves are an environmentally friendly, lightweight and high-strength cushioning packaging material, which is widely used in logistics, warehousing and transportation industries. The automatic honeycomb paper core sleeve making machine uses an efficient rolling and cutting process to process paper rolls such as kraft paper, white paper or yellow paper into honeycomb-structured paper covers for packaging protection.
Product Features：
* Efficient production: The paper feeding speed of the automatic honeycomb paper sleeve making machine can reach 200 meters/minute, which can quickly complete the production of paper sleeves and greatly improve production efficiency.
* Environmentally friendly materials: Recyclable kraft paper is used as raw material, which conforms to the trend of environmental protection and reduces the impact on the environment.
* Easy operation: The equipment adopts touch screen control, the operation interface is friendly and easy to use. At the same time, it has functions such as automatic counting and automatic shutdown when the material is cut off to ensure the stability of the production process.
* Customized production: The size and shape of the paper sleeve can be adjusted according to customer needs to meet the packaging needs of different products.
* Small footprint: The equipment is compactly designed and occupies a small area, suitable for production environments of various sizes.
Product Parameters
| Item | Honeycomb Paper Core Sleeve Making Machine |
| MOQ | Support 1 piece delivery |
| Warranty | 1 year |
| Machine Size | 3200*1380*1380mm |
| Weight | 800KG |
| Power | 3KW |
| Air Source | 0.6mpa |
| Machinery Test Report | Provided |
| Hot Melt Adhesive Forming Speed | About 9 seconds/piece |
| Adaptive Material | honeycomb kraft paper core. Height 10~15mm, width 8~16mm, length 200~600mm, paper thickness 50g~80g |
| White Glue Forming Speed | About 15 seconds/piece |
Honeycomb Paper Core Sleeve Making Machine Working principle
The working principle of the automatic honeycomb paper sleeve making machine is based on rolling cutting technology. The paper roll enters the machine through the unloading device, and is rolled and cut by the knife roller to form a paper cover with a honeycomb structure. The key components of the equipment include:
*Unloading device: A dual photoelectric eye tracking system is used to ensure the smooth delivery of paper.
*Rolling cutting system: The paper is cut into a honeycomb structure through the high-speed rotation of the knife roller.
*Material collection device: Automatic material collection to ensure neat stacking of paper sleeves.
Product Application
Automatic honeycomb paper sleeve making machines are widely used in multiple industries, including:
*Logistics and warehousing: used to package fragile items such as glass, ceramics, etc., to provide buffering protection.
*Electronic products: provide environmentally friendly and efficient packaging solutions for electronic products.
*Household items: used to package furniture, lamps, etc. to reduce damage during transportation.
*Food industry: used to package food, such as fruits, vegetables, etc., to ensure the freshness and safety of the products.
