The fully automatic honeycomb paper making machine can automatically produce honeycomb paper rolls on demand and intelligently, reducing manual intervention and improving production efficiency by at least 20%. For the packaging industry, honeycomb paper is a lightweight and durable cushioning and protective packaging material, and 100% recyclable.
This fanfold paper folding machine is mainly used for batch and automatic perforation cutting and folding of kraft paper rolls into fan-shaped stacks to form Z fold paper, which can be used for filling in boxes and transporting protective products.
Automatic kraft bubble bag mailer envelope making machine for making mailer bags made of kraft paper and poly bubble lining. The coated kraft paper is combined with the PE bubble wrap by heating the jumbo roll.
About The Product

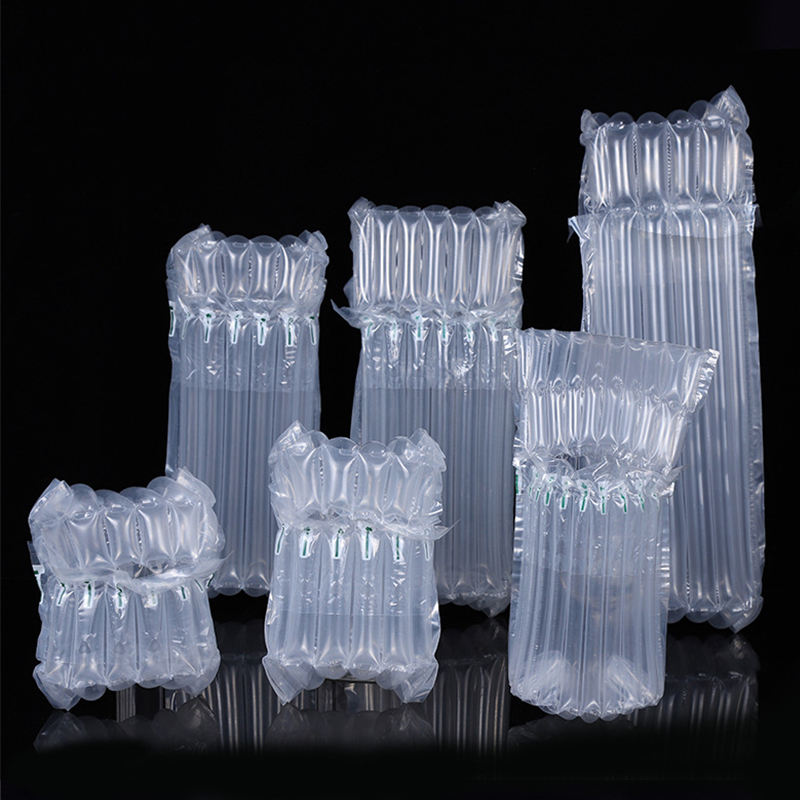

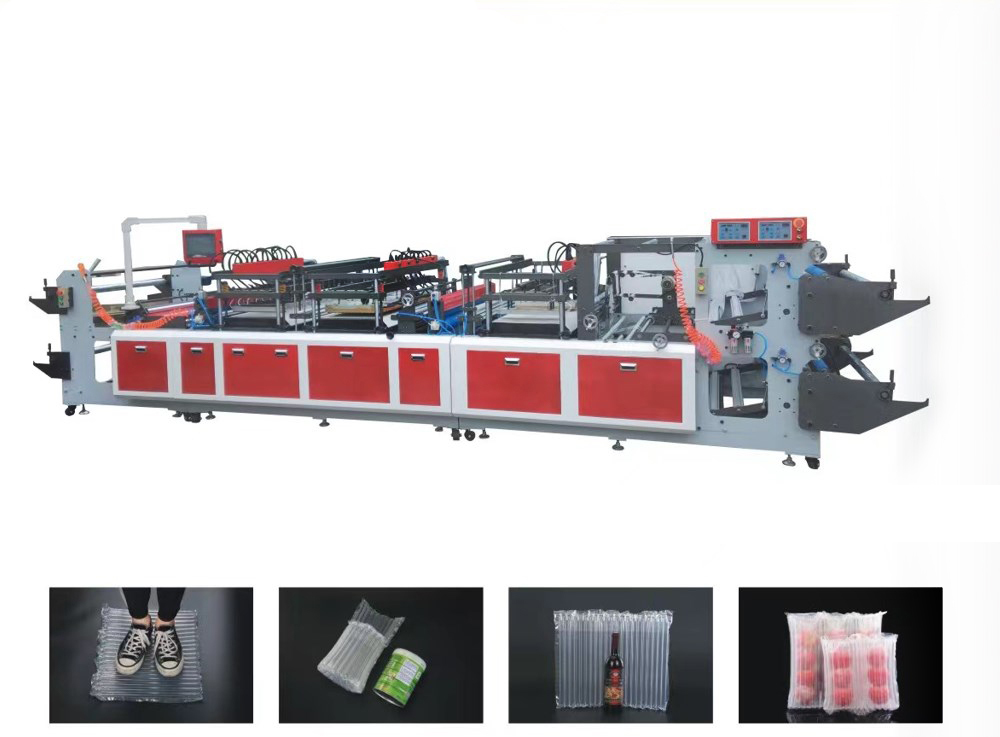

The inflated air column cushion bag makng machine production line is a fully automated equipment designed for the production of high-performance cushioning air column bags. The air column bag forms an independent air column structure by injecting air, providing excellent seismic protection for fragile products, and is widely used in electronic products, glass products, precision instruments and other fields.
The air column cushion bag makng machine realizes one-button operation through PLC intelligent control, stable and high production, saving labor and energy costs; it supports flexible customization of multiple sizes and specifications, and realizes full-process automated production from raw materials to finished products, ensuring the sealing, durability and consistency of the air column bag.
Product working principle:
*Unwinding: Place the raw material roll (multi-layer co-extruded film) on the unwinding rack and smoothly transport it to the forming part through the tension control system.
*Forming: Use some sealing technologies, such as ultrasonic welding molds, hot pressing sealing molds, etc. to heat-seal the multi-layer co-extruded film to form a preset air column structure.
*Inflation: Air is accurately injected into each independent air column through the inflation system to form a stable air buffer layer.
*Cutting: Cut the formed and inflated air column bags according to the preset length, and roll or stack them.
*Control: The entire production line is centrally controlled by the PLC control system to achieve automated production, and can monitor the production status in real time to ensure stable product quality.
Product Features
*Highly automated: From raw material input to finished product output, fully automated production is achieved, which greatly improves production efficiency and reduces labor costs.
*Flexible customization: Air bags of different sizes, specifications and shapes can be customized according to customer needs to meet diversified packaging needs.
*Stable and reliable: The use of high-quality components and advanced control systems ensures stable operation of the equipment and reliable quality of the air bags produced.
*Easy to operate: Humanized design, simple and easy-to-understand operation interface, even novices can quickly get started.
*Energy saving and environmental protection: Energy-saving motors and environmentally friendly materials are used to reduce energy consumption and reduce environmental pollution.

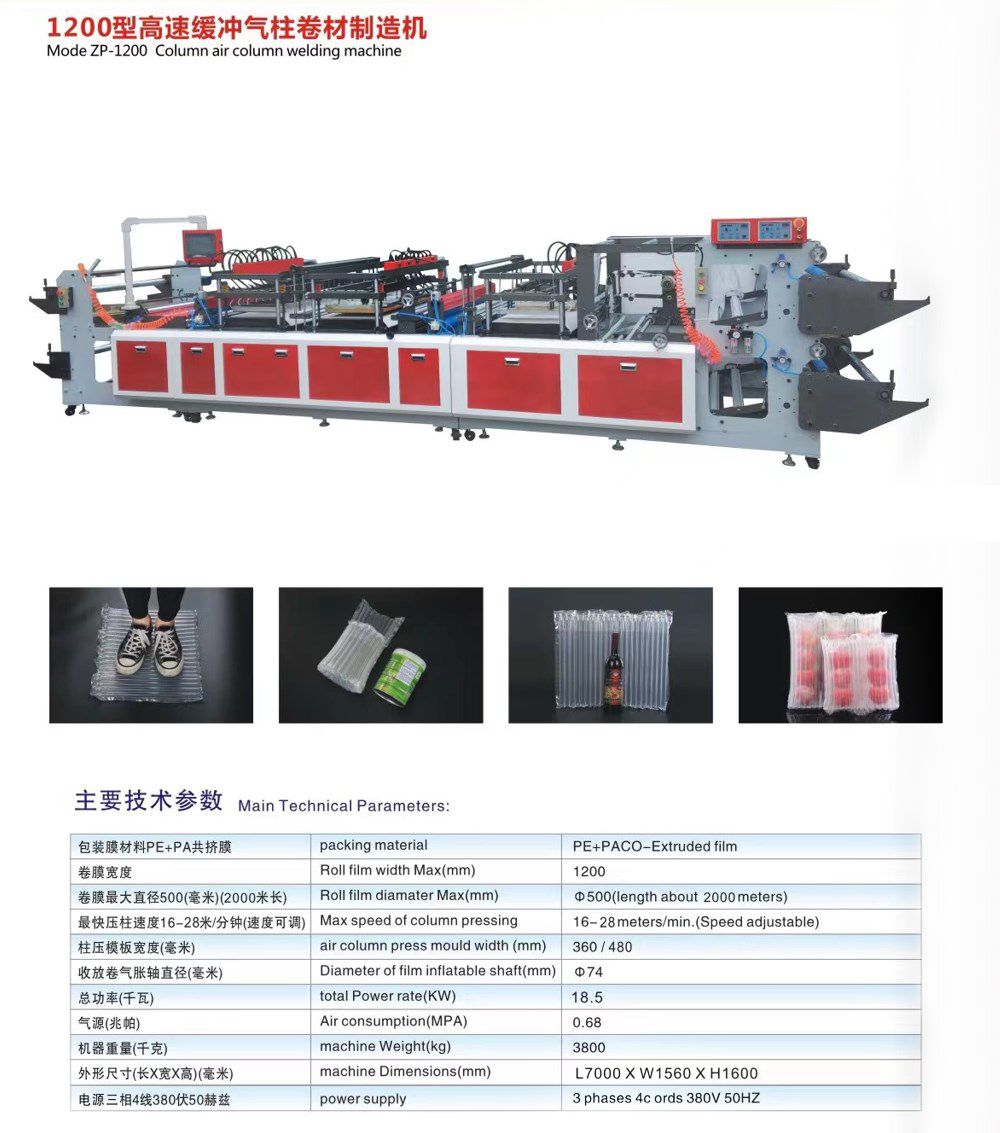

Product Parameters
| Item | Air Column Bag Making Machine |
| Model | ACFMM-01 A-type |
| Type | Full-automatic machine |
| MOQ | 1 Sets |
| Warranty | 1 Year |
| Logo & Color | Accept logo and color customization |
| Machine Size | L*W*H (6700*1560*1680mm) |
| Power Supply | 220V,15.5KW |
| Maximum Unwinding Diameter | 500mm（About 1600 meters） |
| Maximum Width Of Film | 1200mm |
| Maximum Speed | 25-30m/min（Adjustable speed） |
| Weight Approx. | 5100kg |
Advantages and Applications
Advantages：
1.Reduce costs: Automated production reduces labor costs, high efficiency reduces production costs, and helps you gain greater profit margins.
2.Improve efficiency: Automated production lines greatly improve production efficiency, shorten delivery cycles, and meet your needs for mass production.
3.Improve quality: Stable equipment performance and strict quality control ensure that the air column bags produced are of high quality and effectively protect your products.
4.Expand business chain: Improve its own manufacturing strength, and provide the air column bags produced to local small and medium-sized packaging companies and express logistics warehouses.
5.Enhance competitiveness: Use advanced air column bag packaging solutions to enhance product image and enhance market competitiveness.
Application areas:
*Electronic products: Transportation packaging of electronic products such as mobile phones, computers, and cameras.
*Glass products: Transportation packaging of fragile items such as glass cups, glass bottles, and glass crafts.
*Precision instruments: Transportation packaging of valuable items such as medical devices, optical instruments, and precision machinery.
*Other areas: Transportation packaging of items that require buffering protection, such as furniture, toys, and gifts.
