About Our Product

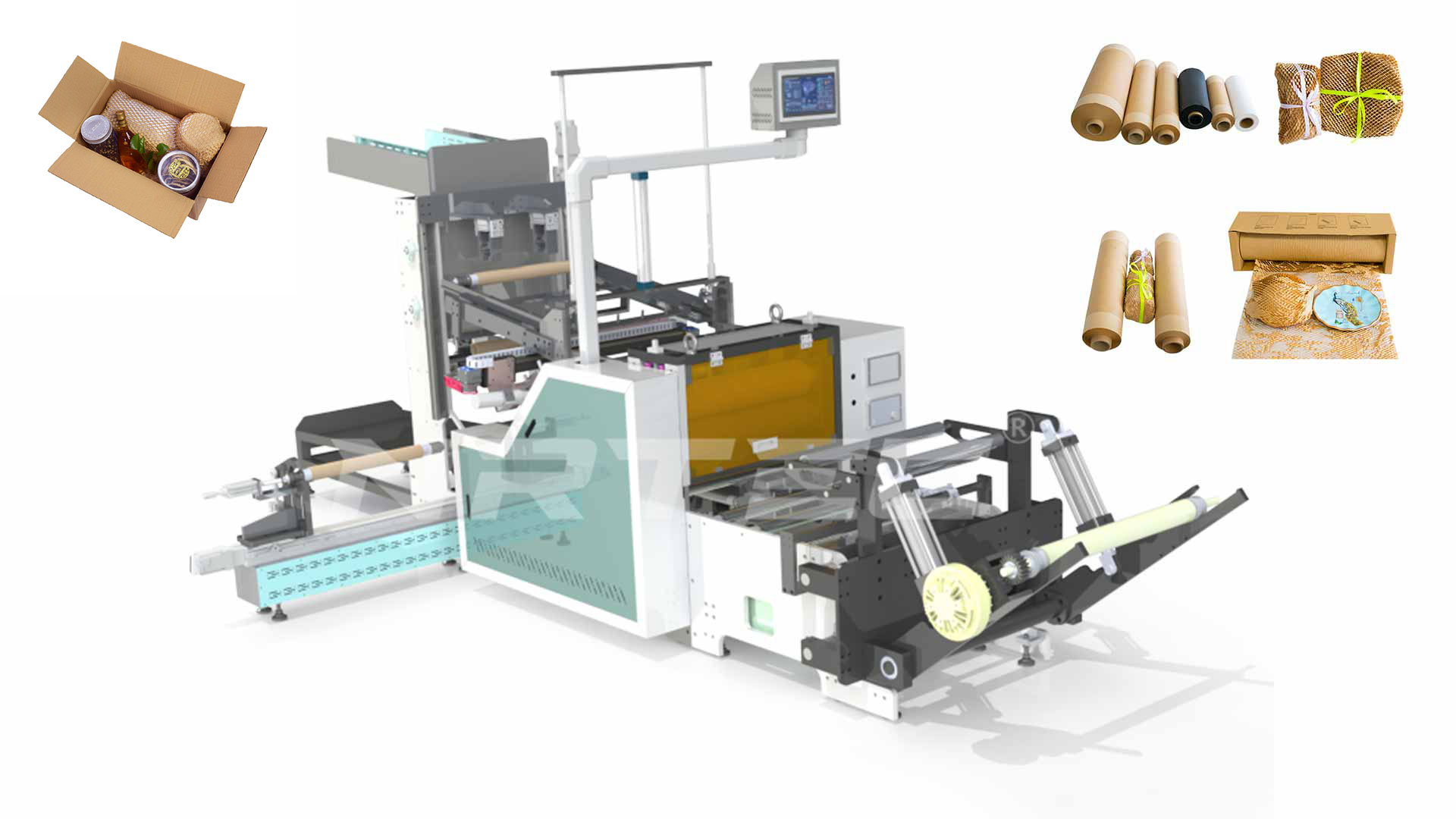

The kraft honeycomb paper roll making machine mainly uses advanced automation control technology and recyclable kraft paper processing technology to produce honeycomb paper rolls.
Feed the kraft paper into the system, set the speed and width parameters through the touch screen, and it will run automatically. After continuous stretching, bonding, unwinding, rewinding, slitting and other tools, a hexagonal structure with a 3D surface is formed, which is similar to nature. Honeycomb structure, hence the name honeycomb paper.
The honeycomb paper produced can be used for express logistics packaging or decoration of valuables, fragile goods and gifts, fruit preservation, etc., and even filling the internal gaps of packaging. The entire process is automated and requires no manual intervention.
Features:
1. Automatic rewinding and unwinding, rewinding and cutting, etc.
2.110 Automatic correction system for synchronous machine electrical cylinder correction
3.1.5KW automatic feeding device for hydraulic system
4. Automatic tube loading device, accurate, stable and reliable
5. Source manufacturer, can deeply customize logo and color
6. Provide product operation and maintenance videos (expatriate engineers)
Product Parameters
| Item | Kraft Honeycomb Paper Roll Making Machine |
| MOQ | Support 1 piece delivery |
| Logo & Color | Accept logo and color customization |
| Warranty | 1-year |
| Effective Width Of Die-cutting Stick | 550mm |
| Effective Unwind Width | 540mm |
| Die-cutting Roll | 240*600(Helical Tooth) |
| Die Cutting Bottom Roller | 240*600(alloy steel+main servo drive) |
| Wrap-Up | 300 Roller Friction Winding |
| Automatic Feeding Device | 1.5KW Hydraulic System |
| Automatic Deviation Correction System | 110 Synchronous Electromechanical Cylinder Correction |
| Parameters | Machine Size:L*W*H (4840*2288*2100) |
| Speed:5-280m/min | |
| Power:6KM | |
| Voltage:380V/50HZ | |
| Weight:2500KG | |
| Automatic Tube Loading Device | (Automatic loading of paper tube + automatic loading of inflatable shaft +automatic pumping + automatic placement of inflatable shaft + automatic winding of inflatable shaft + automatic placement of finished product) |
Invest in a kraft honeycomb paper roll making machine and you will get:
1. Double return on investment: the business chain can be expanded, and the honeycomb paper produced with different specifications can be provided to retailers, e-commerce industries or local logistics warehouses to obtain higher profits.
2. Simplify the procurement process: Produce honeycomb paper as packaging materials yourself, no need to worry about material inventory and no need to compare supplier prices, quality, etc.
Honeycomb paper quality inspection:
1. Randomly tear off the honeycomb paper to check the honeycomb paper forming effect and packaging
2. There is a unique label inside the honeycomb paper tube. If there is any problem, it can be traced back to the source.
