Product Descriptions And Features

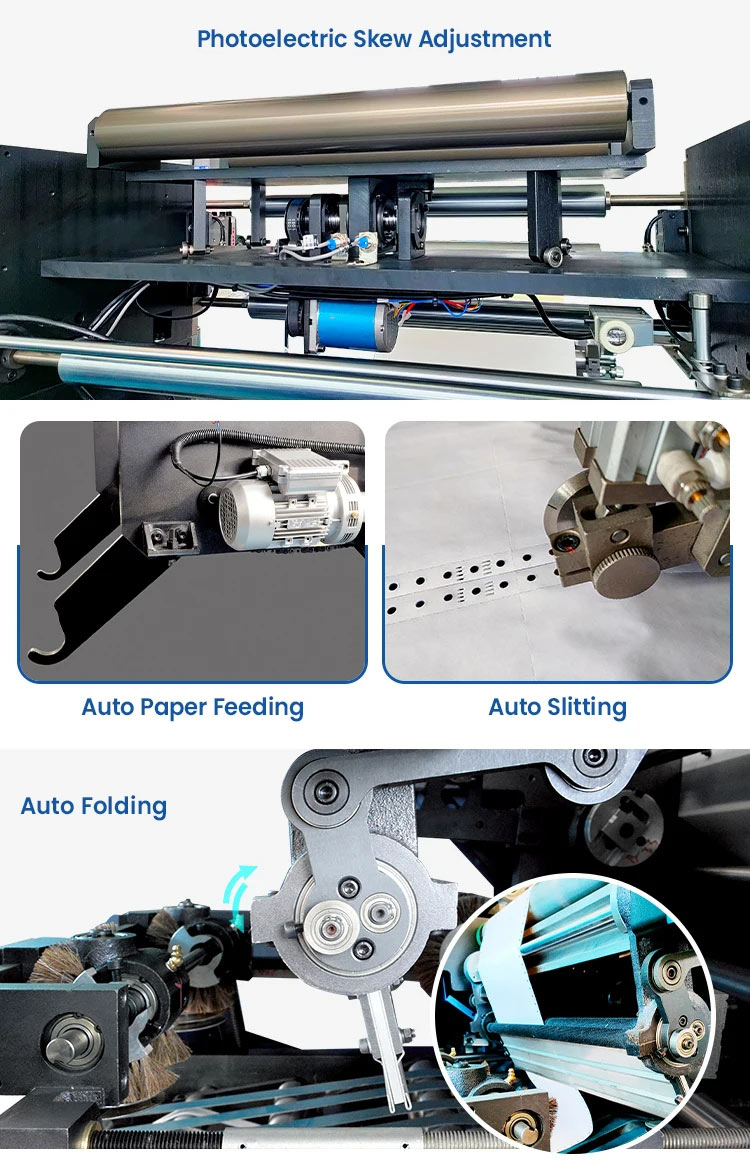

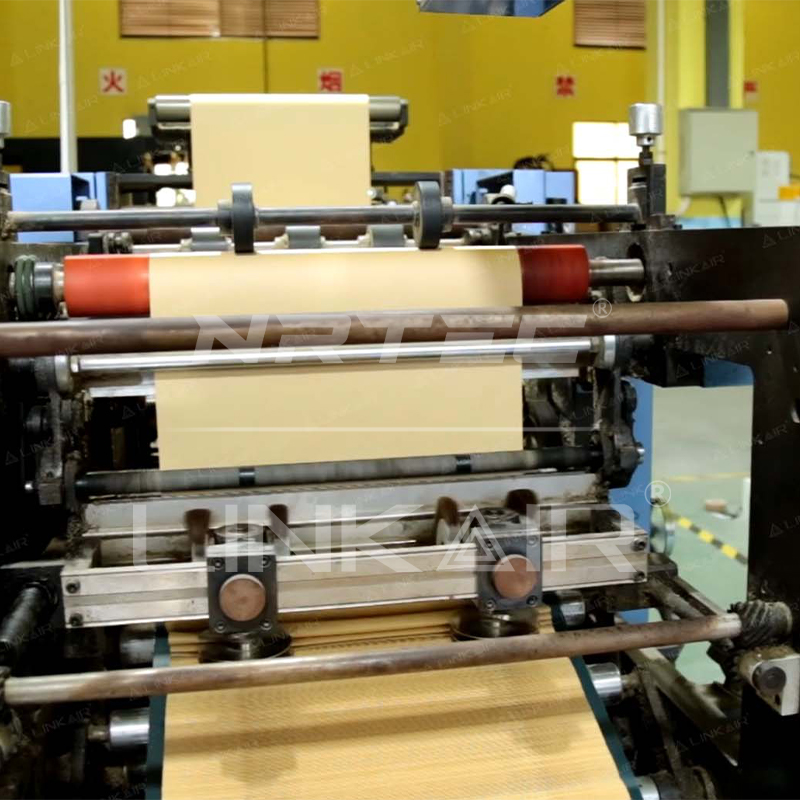

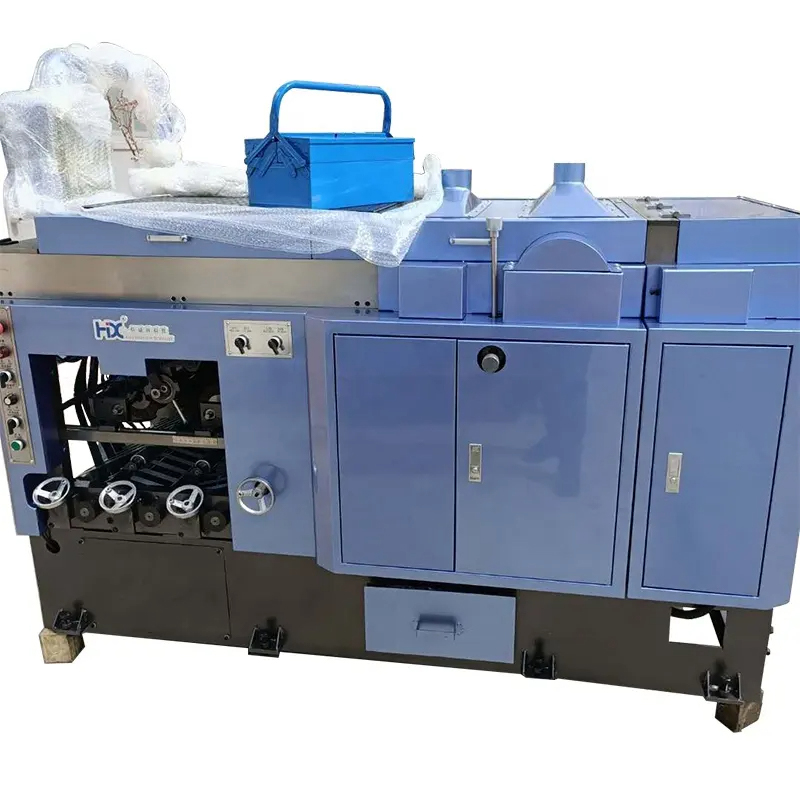

This paper perforating folding machine, after feeding the paper into the machine, uses S-shaped paper threading and paper movement continuously, and then uses its own rollers and internal blades to continuously punch holes at specific paper edges, and finally forms a neat Z fold paper stack, and these holes are used as marks or traces of the folded paper.

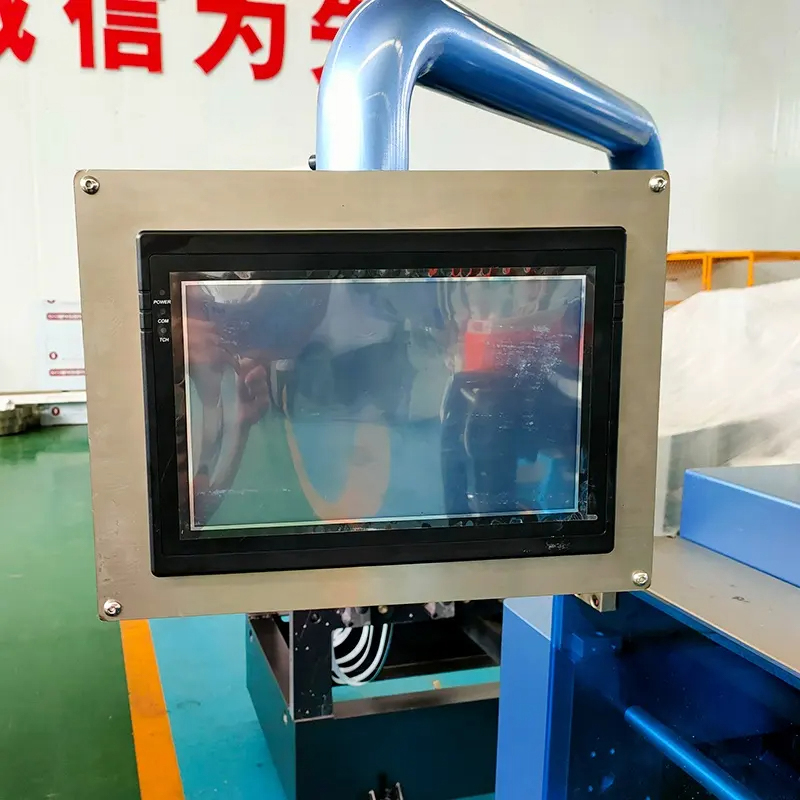

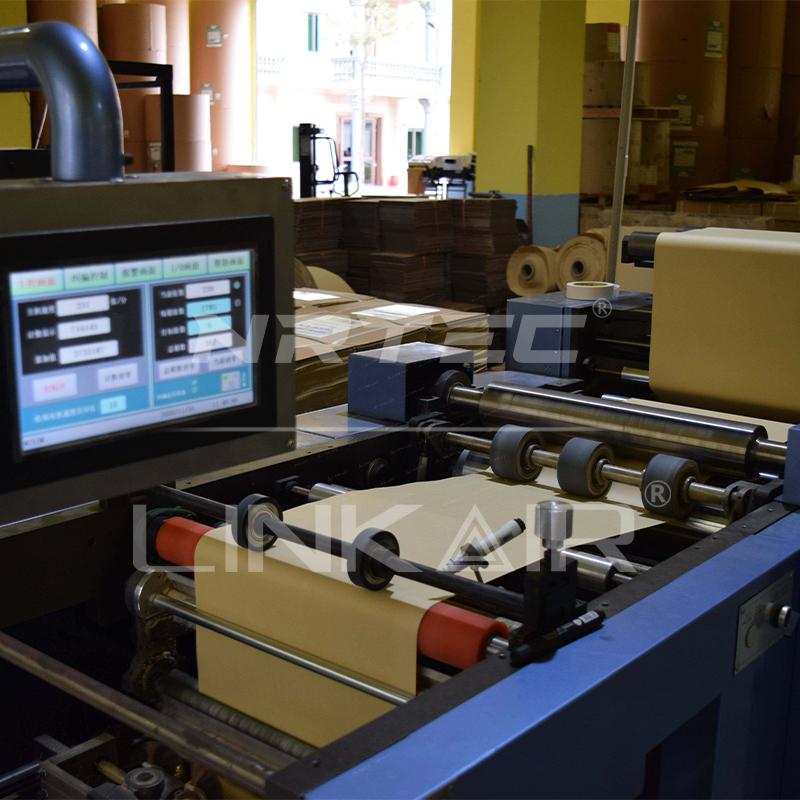

The entire production process is fully automated to control the paper folding production process, and the speed and meter parameters are set through a simple and friendly control screen to ensure accurate and stable paper folding.
In addition, the continuous computer paper folding machine produces at 5-200 meters/minute, and the side folding now has an optional folding number, which can be 11 inches/2 folds or 3 folds. The folding length can also be selected in increments of 8-15 inches/1 inch, thereby meeting the paper usage needs of various industries.
Product Parameters
| Item | Paper Folding Machine |
| Model | HX500DK-K |
| MOQ | Support 1 piece delivery |
| Warranty | 1 year |
| Logo & Color | Accept logo and color customization |
| Max. diameter of paper-roll | 500mm |
| Max. diameter of paper-roll | Φ1000mm |
| Paper weight | 40-150g/Square meter |
| production speed | 5-200m/min |
| Lareral folding line | 11 inch/2foldings or 3 foldings, optional |
| Folding length | 8-15 inch /scaled by 1 inch, optional |
| Power | 220V/50Hz/2.2KW |
| Size(L*\N*G) | (3700+900/layer)*1100*1200mm |
| Weight | 1800+150Kg/roll |
Features:
1.Simple operation: With a clear and user-friendly operation console, it is easy to set the required parameters and operations without the need for additional employee training.
2.Customization: The paper perforating folding machine can also fold kraft paper into Z fold paper for packaging protection, and can also be customized with brand information such as color and logo.
3.Precision packaging system: With an advanced dual-frequency controller and advanced sensors and rollers, it can ensure that every fold is accurate and error-free, reducing errors caused by manual intervention.
4.Flexibility: It can handle different paper sizes and types, and the length can also be selected in increments of 8-15 inches/1 inch.
5.Versatility: This paper folding machine is suitable for a wide range of applications, from office documents to retail receipts.
6.Environmental protection: The energy-saving components used in this machine consume less electricity, making it an environmentally friendly business choice.
7.Sturdy construction: Made of high-quality materials, the machine is durable and can withstand the wear and tear of daily use.
Application areas:
1.Accounting and finance: used to process financial statements, invoices and other documents in continuous formats.
2.Retail: fold receipts and transaction records for easy storage and retrieval.
3.Hospitality industry: organize guest bills and other continuous paper records.
4.Printing services: used to fold continuous printed work to ensure neat and professional results.
5.Education: fold test papers and other educational materials for distribution.
