The fully automatic honeycomb paper making machine can automatically produce honeycomb paper rolls on demand and intelligently, reducing manual intervention and improving production efficiency by at least 20%. For the packaging industry, honeycomb paper is a lightweight and durable cushioning and protective packaging material, and 100% recyclable.
This fanfold paper folding machine is mainly used for batch and automatic perforation cutting and folding of kraft paper rolls into fan-shaped stacks to form Z fold paper, which can be used for filling in boxes and transporting protective products.
Automatic kraft bubble bag mailer envelope making machine for making mailer bags made of kraft paper and poly bubble lining. The coated kraft paper is combined with the PE bubble wrap by heating the jumbo roll.
Product Video
Product Descriptions And Operating Principles

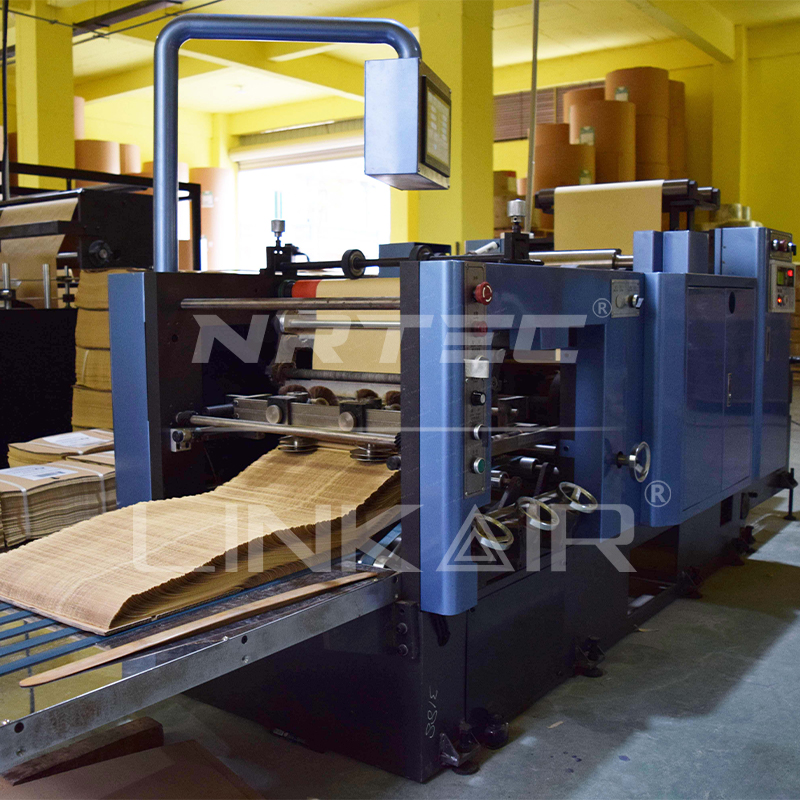

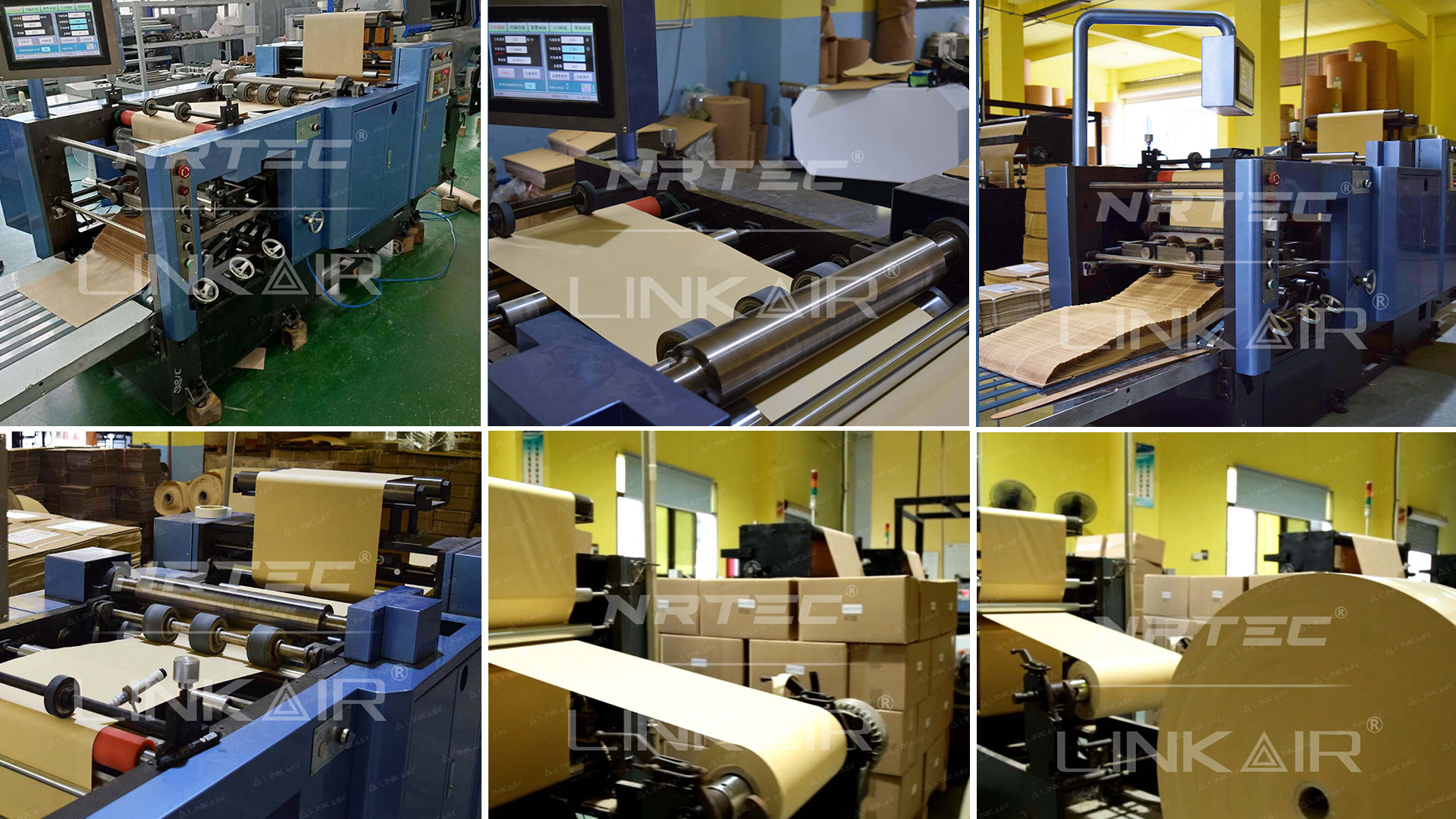

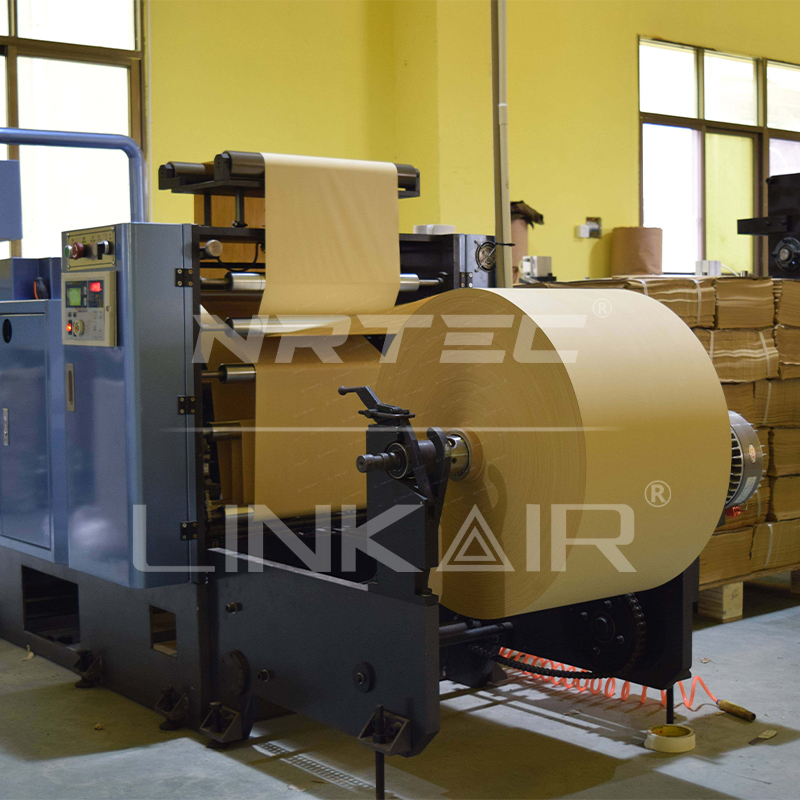

This automatic kraft paper fanfold paper making machine cuts kraft paper through a series of internal rollers and blades and stacks and collects it in a Z or fan shape. This machine is an indispensable piece of equipment for companies that need to use folded kraft paper quickly and efficiently every day. .

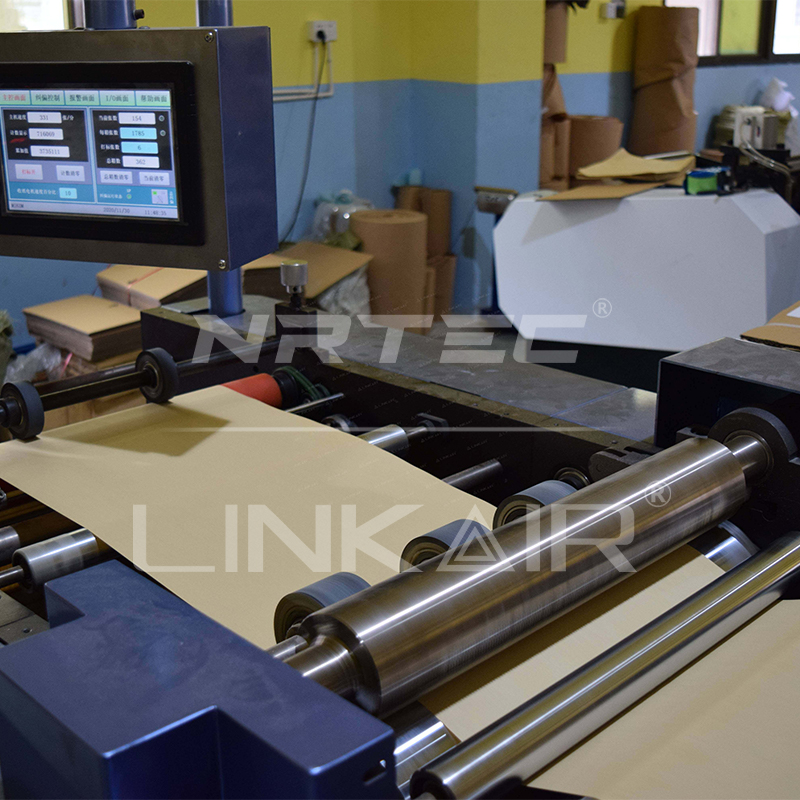

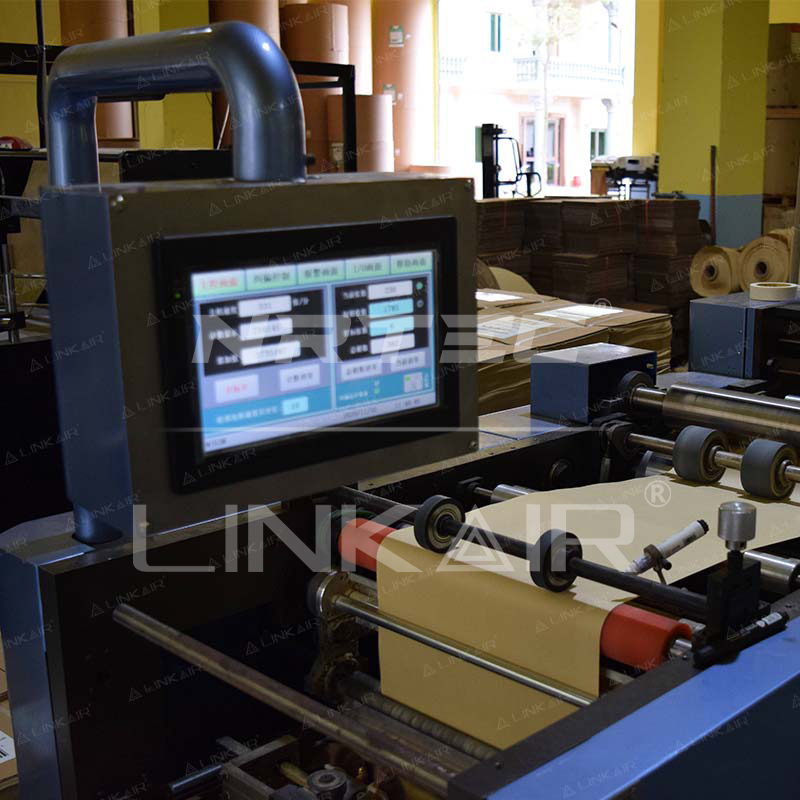

The machine has automatic correction and automatic rewinding functions. It works by feeding kraft paper into a set of perforated blades and folding devices, and is controlled by integrated stepless frequency modulation speed regulation to ensure fast and stable paper feeding. Automatic paper feeding, The folding is completed once, and the electronic counting function saves manual intervention time. Once the paper is folded according to the programmed function, it is ready for use.
When you have a kraft paper fanfold paper making machine, it can fold kraft paper quickly and at high speed. And neat and consistent. As a result, you will save a lot of time and money, even expand your business chain, and reduce a large part of the time and energy of manual folding and counting.
Product Parameters
| Item | Fanfold paper folding machine | |||
| MOQ | Support 1 piece delivery | |||
| Warranty | 1 year | |||
| Logo & Color | Accept logo and color customization | |||
| Max.Width Of Paper-roll | 500mm | |||
| Max.Diameter Of Paper-roll | 1000mm | |||
| Paper Weight | 40-150g/Square Meter | |||
| Production Speed | 5-200m/min | |||
| Lateral Folding Line | 11 Inch (2 folds or 3 folds, others are optional) | |||
| Folding Length | 8-15 Inch (11 inches as standard, others are optional) | |||
| Unwinding Shaft | 3 Inches of Air Swelling the Shaft | |||
| Size(L*N*G) | 3700+900/layer*1100*1200 | |||
| Dimension(L*W*H) | 3700+1100/roll*1100*1300mm | |||
| Parameters | Power:220V,50HZ,2.2KW Voltage:22V-380V,50HZ Weight:1800Kgs | |||
Product Applications
1. Solve inventory worries
The kraft paper fanfold paper making machine produces kraft paper that can be used by yourself, solving the anxiety of stocking packaging materials and simplifying the purchasing process (selecting buyers, comparing material prices, and delivery times). Even during the busy packaging season, there is no need to purchase in advance, just do Good production planning response.
2. Better for your business and your employees
Z folding paper is widely used in the packaging and transportation industries, and can cooperate with big brands in the packaging industry, such as: Storopack brand PAPERplus SHOOTER, Sealed Air brand: FasFil 1500 and FasFil Mini; Ranpak brand: FillPak M, FillPak TTC, FillPak Trident, FillPak TT, FillPakSL and other intelligent gap paper filling machines.
3. Provide it to local logistics warehouses.
Table of contents:
What is fanfold paper?
What is fanfold paper used for?
What are the different types of paper folding machines?
What is fanfold paper?

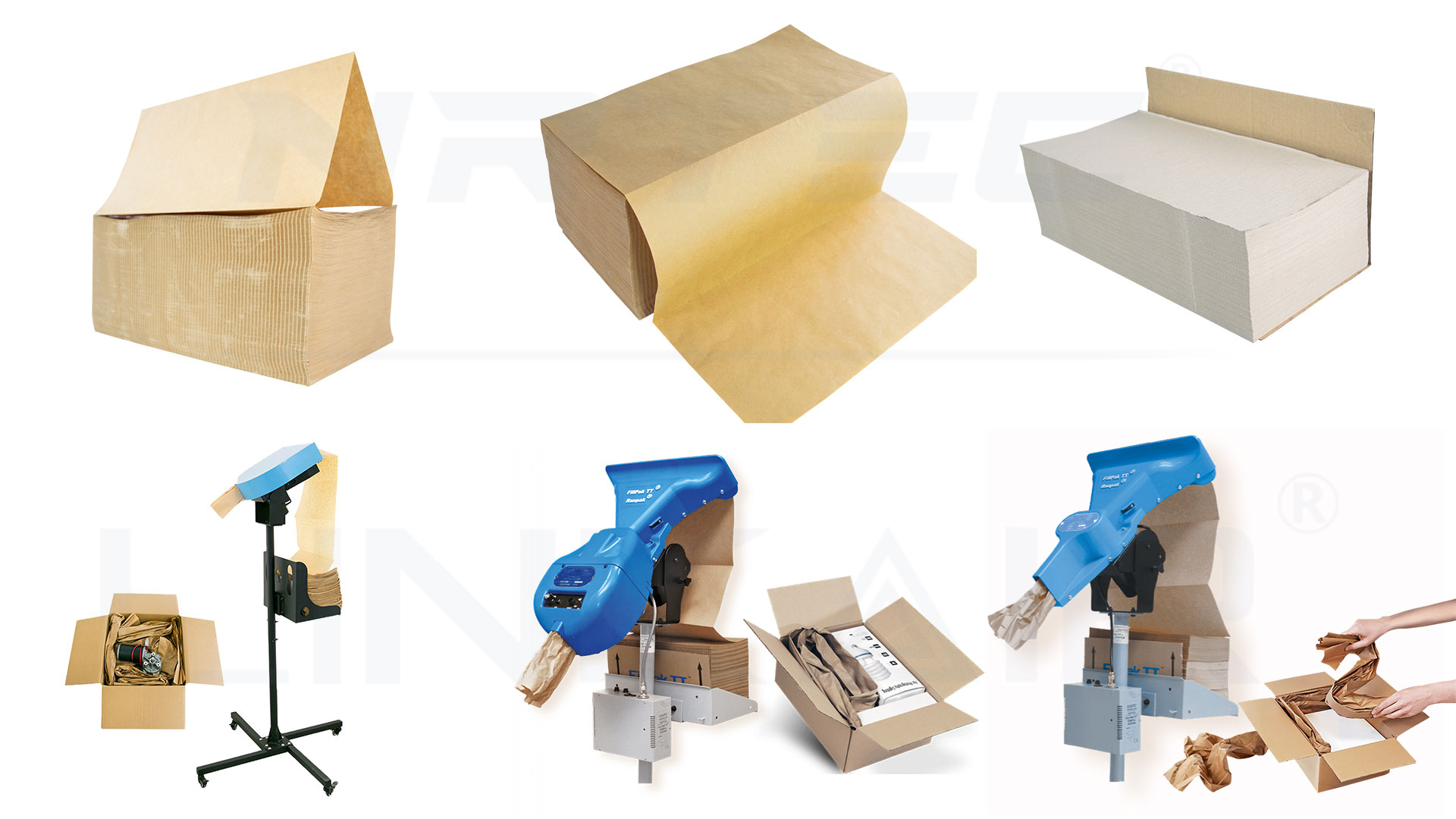

Fanfold paper is also called z fold paper or accordion paper. It is made by folding kraft paper into a Z fold at a specific position according to the standard. It is often used in the express packaging and transportation industry as a gap filler in the box and to protect the transported items.
What is fanfold paper used for?
Kraft fanfold paper is a folded paper that is stacked neatly in a row. It can be used in Ranpak's intelligent void filling machine to produce kraft paper pads. Kraft paper pads have tough and firm cushioning and shock absorption properties. They can protect fragile or valuable items in various transportations and ensure their safe delivery. They are widely used in packaging, logistics warehouses and distribution centers.
What are the different types of paper folding machines?
There are three main types of folding machines currently in use: knife folding machines, buckle (or plate) folding machines and combined folding machines. These machines use knife folding and buckle folding at the same time at different stages of the same machine. In the packaging industry, Z fold paper folding machines are commonly used.
