The fully automatic honeycomb paper making machine can automatically produce honeycomb paper rolls on demand and intelligently, reducing manual intervention and improving production efficiency by at least 20%. For the packaging industry, honeycomb paper is a lightweight and durable cushioning and protective packaging material, and 100% recyclable.

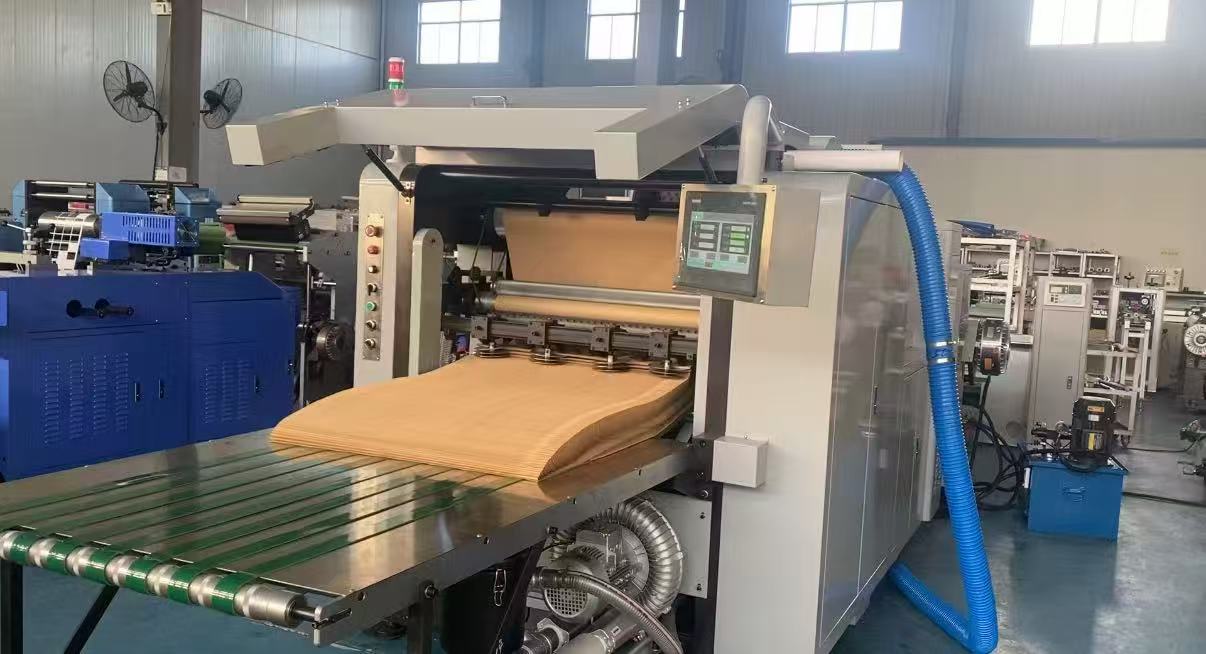

This fanfold paper folding machine is mainly used for batch and automatic perforation cutting and folding of kraft paper rolls into fan-shaped stacks to form Z fold paper, which can be used for filling in boxes and transporting protective products.
Automatic kraft bubble bag mailer envelope making machine for making mailer bags made of kraft paper and poly bubble lining. The coated kraft paper is combined with the PE bubble wrap by heating the jumbo roll.
Product Video
Product Descriptions And Features

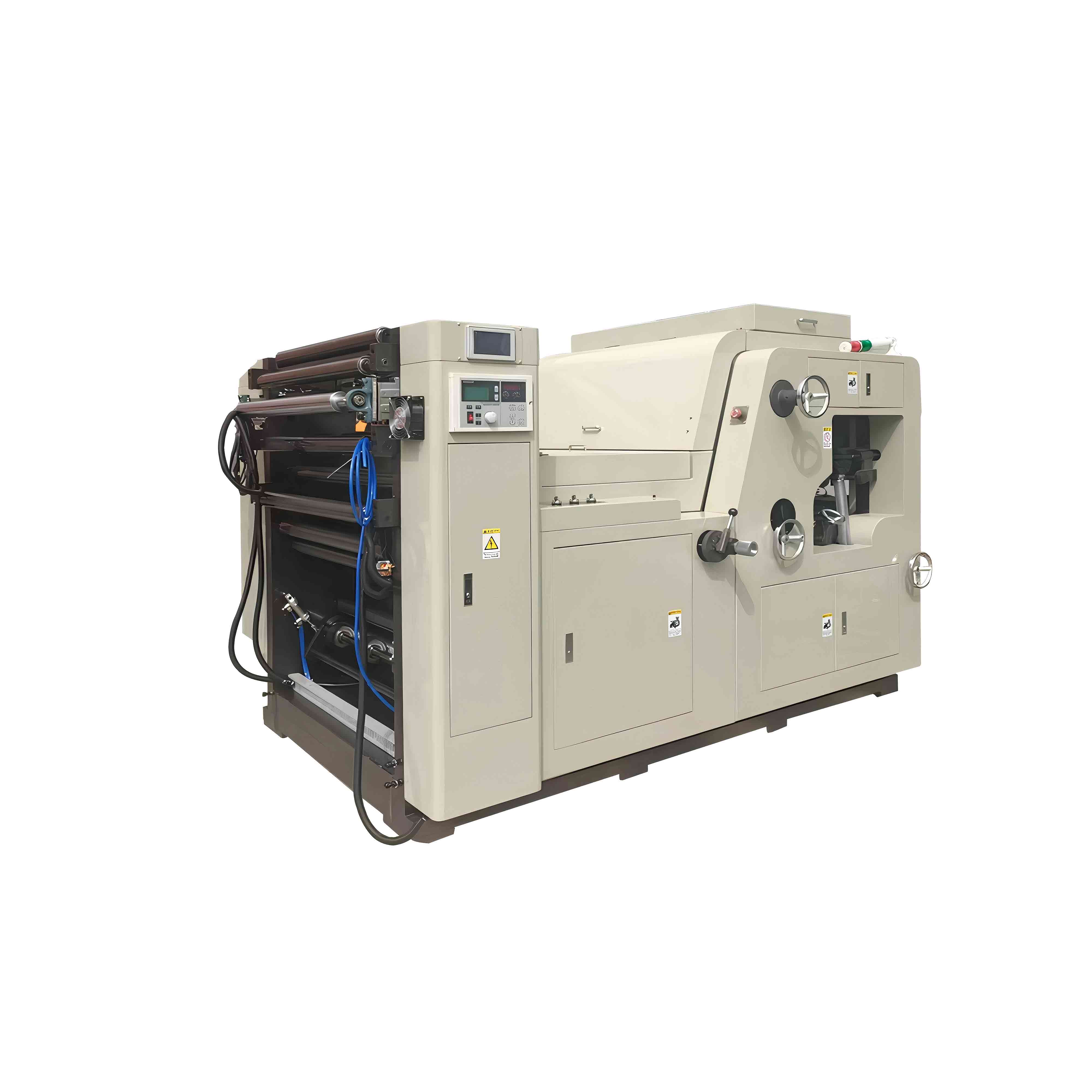

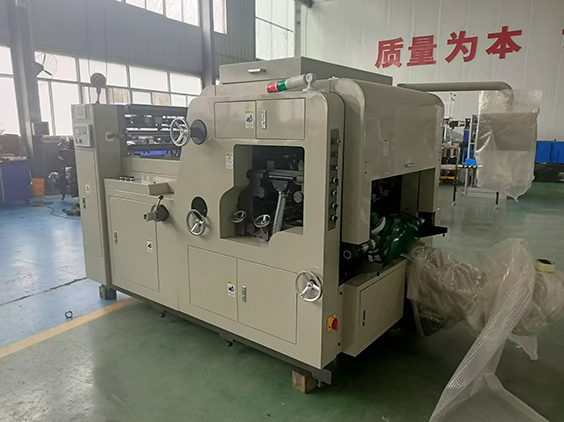

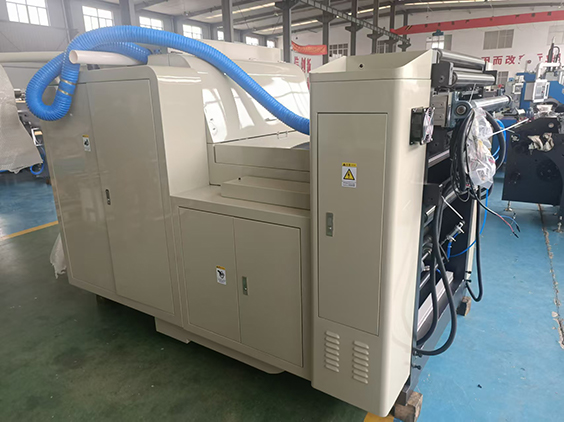

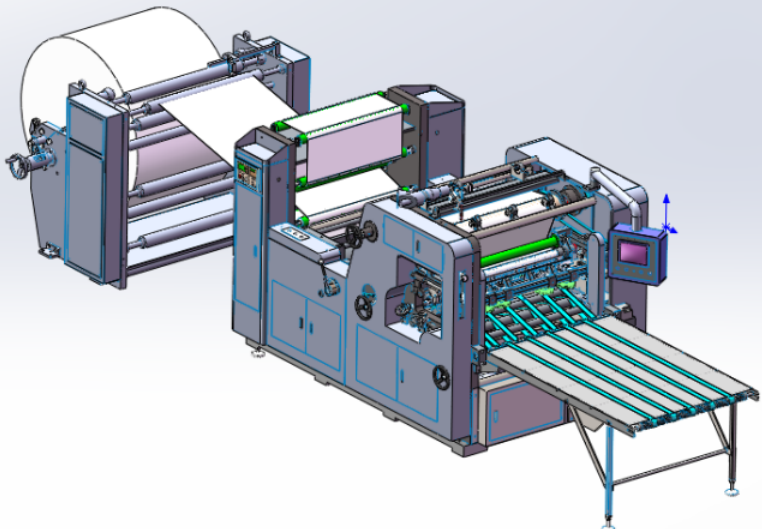

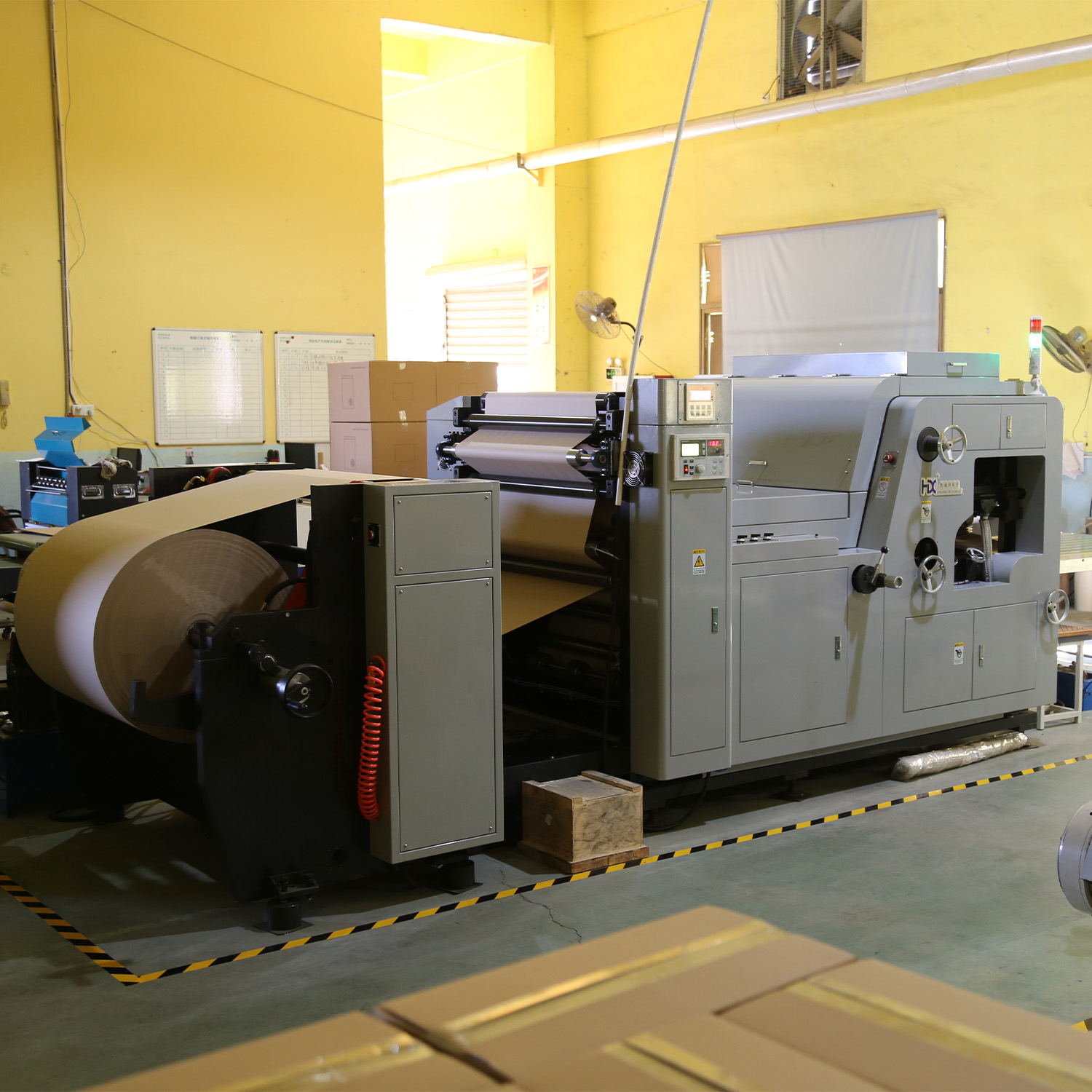

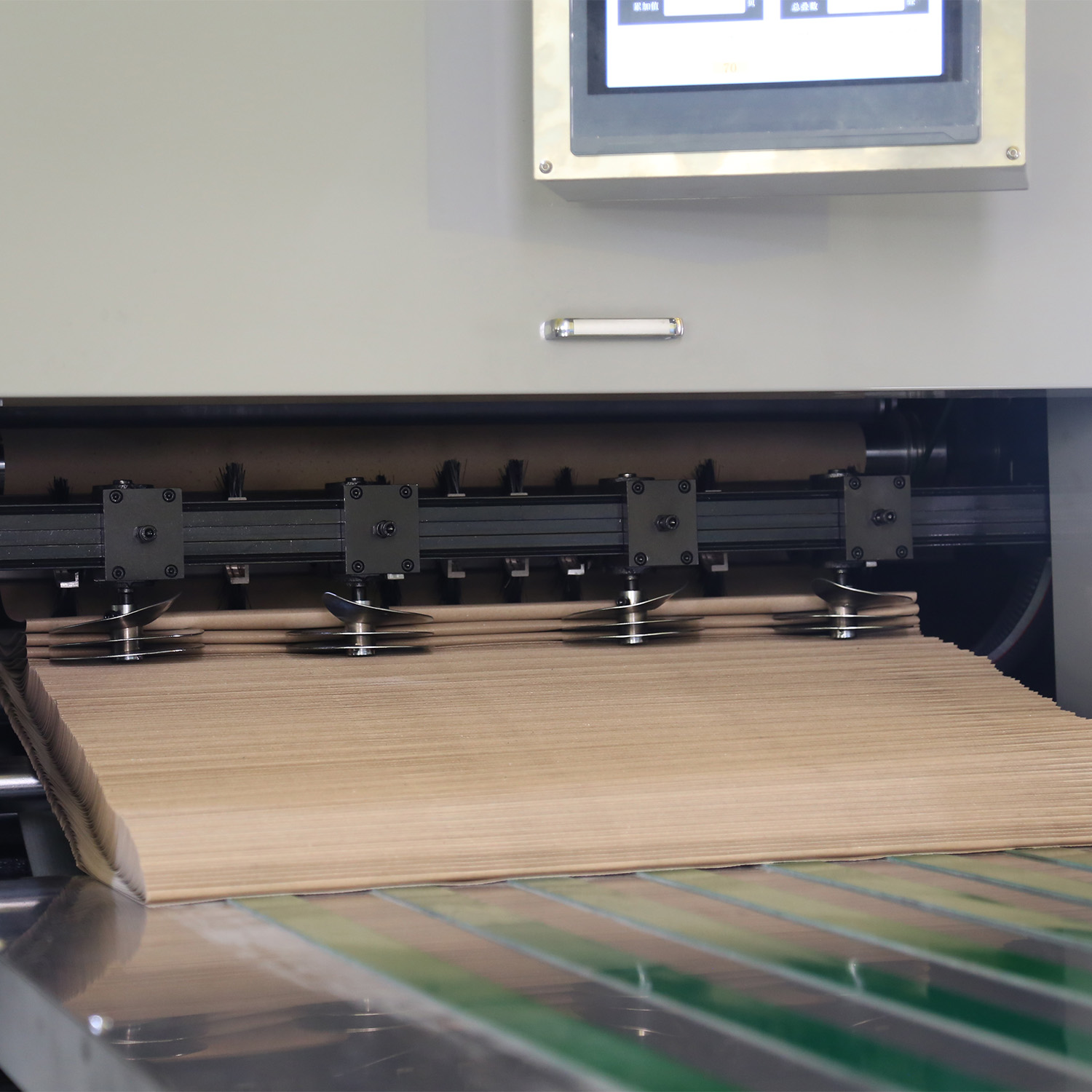

The kraft paper folding machine is an innovative folding device developed to meet both domestic and international market needs. It can perform slitting, automatic folding, and paper collection on kraft paper. With its high degree of automation, simple operation, excellent performance, and low noise, it delivers neat and smooth output—making it an ideal solution for modern folding applications.
Technical Characteristics

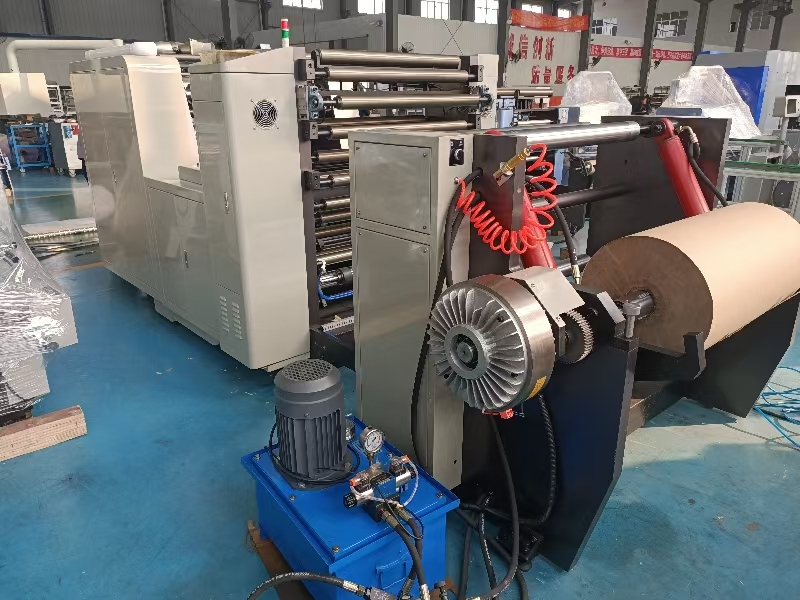

The machine uses a combined air expansion shaft and hydraulic system for easy, convenient paper feeding. A PLC touchscreen control system ensures intuitive operation, while the ultrasonic automatic correction system maintains product accuracy. The centralized oil supply system ensures smooth power transmission, and an air suction dust removal system keeps the working area clean by removing scraps and dust. The HT250 cast iron machine body guarantees stability during high-speed feeding. Overall, the operation is safe, simple, and meets international standards for noise and performance.
Product Parameters
| Item | HX762NZ Kraft Paper Folding Machine |
| Maximum roll width | 762mm |
| Maximum unwinding diameter | 1200mm |
| Paper weight | 40-150g/m² |
| Maximum roll weight | 1000 KG |
| Working speed | 5-300m/min |
| Fold size | 8-15inches |
| Weight | 6440KG |
| Size | 5.5*1.65*1.7m |
| Power | 380V/50HZ |
| Main motor | 22KW |
| Paper loading mode | Hydraulic paper feeding |
| Paper loading shaft | 3inches |
| Paper output mode | Electric machinery |
| Waste discharge mode | Air blow |
| Main dive part | High precision gear |
| All cast iron wallboard | Overall(45mm thick) |
| Complete machine | Metal baking vamish |
Product Applications And Solutions
